Glory 580 Pro Electric Tailgate Lift Trunk Rear Door Can Open Electronically

Glory 580 Pro Electric Tailgate Lift Trunk Rear Door Can Open Electronically

Large Image :  Glory 580 Pro Electric Tailgate Lift Trunk Rear Door Can Open Electronically

Product Details:
Place of Origin: China
Brand Name: KaiMiao
Certification: Rohs, E-marks E24
Model Number: KMMB467
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: 1 pc: US$220, ≥2 pcs: Negotiable
Packaging Details: 80*23*15cm,5.5-6 kg
Delivery Time: 3-5 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 20000 sets per momth
Detailed Product Description
Car Model: Glory 580 Pro Year: 2020+

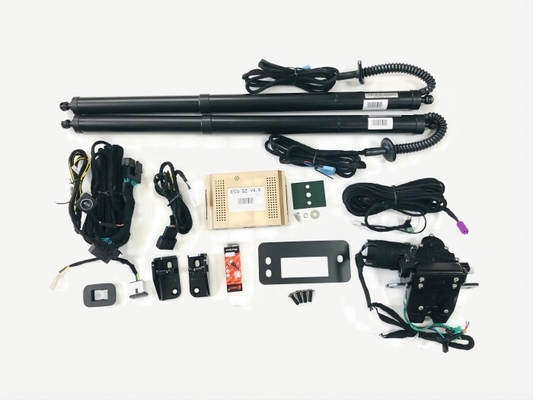

Material: Metal And Plastic Accessory: ECU,Suction Lock,Electric Struts,Bracket...
Warranty: 1 Year Package Size: 80*23*15cm
Operating Temperature: -30℃~+80℃ Rated Voltage: 12V
Highlight:

Glory 580 Pro Electric Tailgate

,

Electronically Electric Tailgate

,

Electric Tailgate Lift Trunk

Glory 580 Pro Electric Tailgate Lift Trunk Rear Door Can Open Electronically





What is the smart power tailgate?


An electric tailgate, also known as a power liftgate or automatic tailgate, is a feature commonly found in modern vehicles that allows the rear door or hatch to be opened and closed automatically with the push of a button or through a sensor-based activation system. It is typically powered by an electric motor and controlled by the vehicle's electrical system.

The electric tailgate offers convenience to vehicle owners by eliminating the need to manually open or close the rear door or hatch. This feature is particularly useful when carrying heavy items or when accessing the cargo area in situations where hands may be occupied, such as when holding groceries or luggage.

The operation of an electric tailgate can vary depending on the vehicle model and manufacturer. In most cases, the tailgate can be opened or closed by pressing a button on the key fob, interior control panel, or using a sensor-based system that detects foot movement under the rear bumper. Some vehicles also provide customizable height settings for the tailgate opening to accommodate different parking spaces or user preferences.

In addition to the convenience factor, electric tailgates often include safety features to prevent injury or damage. For example, they may have sensors that can detect obstacles, such as a person or object in the path of the closing tailgate, and automatically reverse the operation to avoid accidents.


Glory 580 Pro Electric Tailgate Lift Trunk Rear Door Can Open Electronically 0



What is the advantages for our electric tailgate?



Convenience One of the primary advantages of an electric tailgate is the convenience it provides. With just the push of a button on the key fob or interior control panel, the tailgate can be opened or closed automatically. This eliminates the need for physical effort and makes it easier to access the vehicle's cargo area, especially when your hands are full or when you're carrying heavy items. It saves time and energy compared to manually lifting or closing a tailgate.
Hands-Free Operation Many electric tailgates feature hands-free operation, which is an added convenience. By utilizing sensor-based systems, you can open or close the tailgate by simply waving your foot under the rear bumper or using other gesture-based controls. This is particularly useful when your hands are occupied or when you don't want to touch the vehicle, such as when your hands are dirty or when it's raining.
Safety Features Electric tailgates often come equipped with safety features to prevent accidents or injuries. For example, they may have sensors that can detect obstacles in the path of the closing tailgate. If an obstruction is detected, the tailgate will automatically stop and reverse its operation, reducing the risk of collisions or damage to objects or people. This enhances safety for both the vehicle occupants and the surroundings.
Height Adjustment Some electric tailgates offer customizable height settings. This allows you to program the tailgate to open to a specific height that suits your needs or the available space. For instance, you can set a lower opening height in garages with low ceilings or a higher opening height for easy loading and unloading of larger items. This flexibility adds convenience and adaptability to different situations.





How can we open the electric tailgate?


There are several ways to open an electric tailgate, depending on the specific vehicle and its features. Here are some common methods:

Key Fob: Many vehicles with electric tailgates include a dedicated button on the key fob. Pressing the corresponding button on the key fob will activate the tailgate, causing it to open or close automatically.

Front Button: Inside the vehicle, there is typically an interior control panel, often located on the driver's side door or center console. This panel will have a dedicated button or switch specifically for opening and closing the tailgate. Pressing the button or activating the switch will trigger the automatic operation of the tailgate.

Rear Button: Some vehicles have an exterior button or touchpad located near the tailgate itself. Pressing this button will initiate the opening or closing of the tailgate. This is useful when approaching the vehicle from the rear and you want to open the tailgate without entering the vehicle.

Foot Gesture/Sensor: Certain electric tailgates offer hands-free operation using sensor-based systems. These systems detect foot gestures or movements under the rear bumper or designated area. By waving your foot or performing a specific motion, you can trigger the tailgate to open or close without physically touching anything.

Glory 580 Pro Electric Tailgate Lift Trunk Rear Door Can Open Electronically 1


Laboratory Test:



Test Description
Water-Proof Test Perform IPX4 waterproof rating standard, put the poles in the car, dripping for 10 minutes, flusing for many times.
Salt Spray Test Place the poles in 5% NACL solution of salt spray for 256 hours, wash the solution with flowing water, rinse with distilled water, stand it for 1-2 hours. Finally check if the pole is rusty.
High Temperature Test Double pole load balancing. When a pole fails, the door can be prevented from being deformed. When the tailgate fails in a special scene, the system will automatically adjust the closing effort.
Low Temperature Test When the drive circuit is faulty( low-voltage alarm, over-current protection), it will automatically cut off / automatically recover to ensure the safety of vehicles and equipment.
High and Low Temperature Ultra-low quiescent current(Standby Current:1 mA). It can avoid that the vehicle can not start without power due to long-term parking.



Glory 580 Pro Electric Tailgate Lift Trunk Rear Door Can Open Electronically 2
