Dongguan Kaimiao Electronic Technology Co., Ltd
Home ProductsPower Tailgate Lift Kits

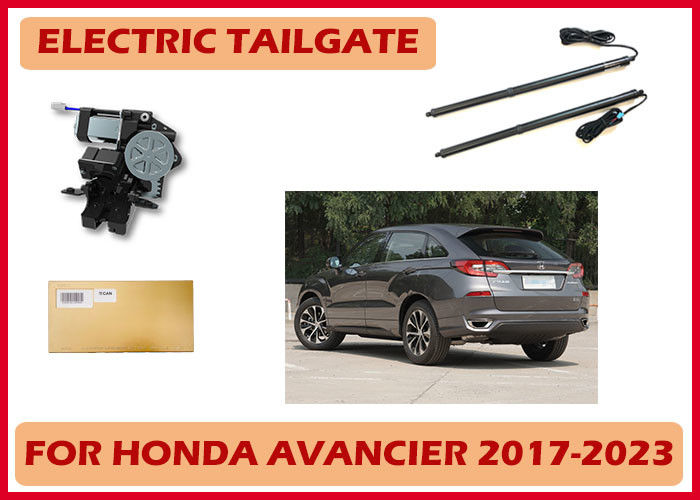

Honda Avancier Auto Electric Tailgate Lift Kits With Double Pole Suction Lock

China Dongguan Kaimiao Electronic Technology Co., Ltd certification
China Dongguan Kaimiao Electronic Technology Co., Ltd certification
Hello, Florence. We have tested one tailgate on Hyundai Tucson. We found that the product quality is good

—— Bolkar

they products are the best in the market we have used other company. there back up service is professiona.l

—— Mr. Nolan

I'm Online Chat Now

Honda Avancier Auto Electric Tailgate Lift Kits With Double Pole Suction Lock

Honda Avancier Auto Electric Tailgate Lift Kits With Double Pole Suction Lock
Honda Avancier Auto Electric Tailgate Lift Kits With Double Pole Suction Lock
video play

Large Image :  Honda Avancier Auto Electric Tailgate Lift Kits With Double Pole Suction Lock

Product Details:
Place of Origin: China
Brand Name: Kaimiao
Certification: Rohs, E-marks E24
Model Number: KMDS163/KMQL163
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: 1 pc: US$220, ≥2 pcs: Negotiable
Packaging Details: 80*23*15cm,5.5-6 kg
Delivery Time: 3-5 working days
Payment Terms: T/T, PayPal, MoneyGram
Supply Ability: 2000 sets per month
Detailed Product Description
Model: Honda Avancier Year: 2017-2023
Operating Voltage: 9-16V Foot Sensor: Optional
Material: Metal And Plastic ECU Color: Gold/Black
Package Size: 80*23*15cm Function: Remote Control, Anti-pinch, Memory Height And So On
High Light:

Auto Electric Tailgate Lift Kits

,

Honda Avancier Tailgate Lift Kits

Honda Avancier Auto Electric Tailgate Lift Kits with Double Pole Suction Lock



What is Automatic Power Tailgate Lift Kit?

This retrofit power lift assist system opens and closes your rear doors at the touch of a button. It provides extra safety and value to your vehicle. It is designed for do-it-yourself through installation and comes with various brackets depending on your car. It has the functions of hand-in-one opening, intelligent anti-pinch, intelligent height adjustment, etc. The driver can control tailgate with the car key tailgate button. It is easy to control and practical.



In terms of structural design, the biggest difference between an electric tailgate and a normal tailgate is the load. The maximum load of the electric strut output is above 3000N, while the gas strut is only about 1000N. This means that the tailgate and body that connect the sides of the electric strut must be designed to be strong enough to withstand deformation under heavy loads.



For single-sided electric strut, it is necessary to check the matching gap between the tailgate and the body when the output loads of the two sides of the strut are inconsistent under the limit conditions. For the double-sided electric strut, the output of the single electric strut is much smaller, but it is also considered that the left and right motor work is inconsistent, and the output load is different, causing the torsion deformation of the tailgate.



Technical Parameters:

Part Name Parameters
Rated Voltage: 12V
Operating Voltage: 9-16V
Working Current: 5A (Instantaneous working current: <20A)
Operating Temperature: -30℃ ~ 80℃
Quiescent Current: <2mA
Storage Temperature: -40℃ ~ 90℃
Remote Control: Key Fob / Front Dash Button / Back Tailgate Button / Foot (Kick) Sensor (Optional)



Honda Avancier Auto Electric Tailgate Lift Kits With Double Pole Suction Lock 0

Honda Avancier Auto Electric Tailgate Lift Kits With Double Pole Suction Lock 1 Honda Avancier Auto Electric Tailgate Lift Kits With Double Pole Suction Lock 2 Honda Avancier Auto Electric Tailgate Lift Kits With Double Pole Suction Lock 3 Honda Avancier Auto Electric Tailgate Lift Kits With Double Pole Suction Lock 4

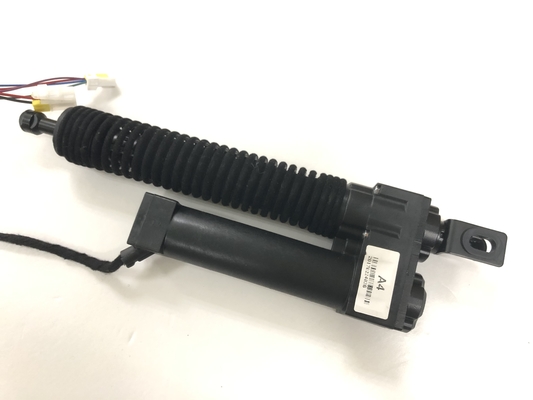

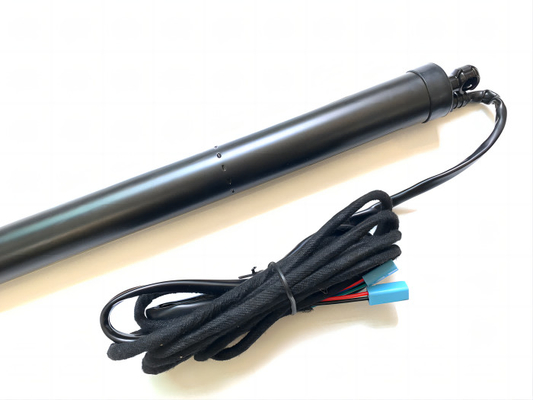

The motor uses imported components, and equipped with high precision planetary reducer, it has the characteristics of strong power, long life and low noise. 304 Stainless steel screw, high strength, corrosion resistance and high transmission efficiency. We use the importes material, reduce the loss of long-term compression and frequent compression values, high and low temperature resistance, longer service life. Standard car grade copper wire, ensure stable power supply performance.
Honda Avancier Auto Electric Tailgate Lift Kits With Double Pole Suction Lock 5 Honda Avancier Auto Electric Tailgate Lift Kits With Double Pole Suction Lock 6 Honda Avancier Auto Electric Tailgate Lift Kits With Double Pole Suction Lock 7 Honda Avancier Auto Electric Tailgate Lift Kits With Double Pole Suction Lock 8

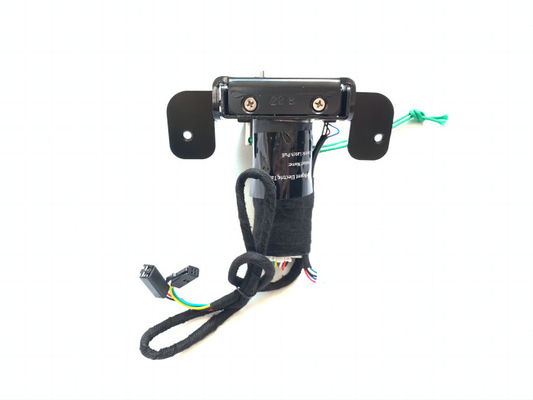

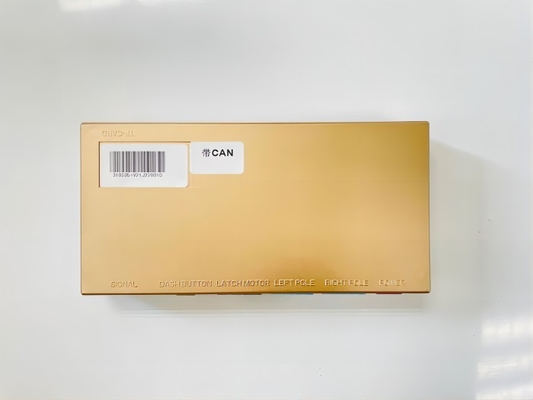

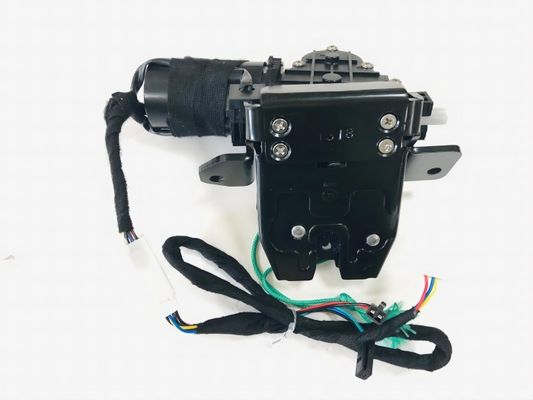

Double lever intelligent double Hall automatic pivot adjustment protection. Combined with the controller, it can achieve high learning settings, anti-pinch and other functions, achieve comfortable and smooth opening and closing. When closing the door, the tailgate is automatically pulled and closed by the electric suction lock. Reduce closed gravity. The tailgate locking actuator is driven directly by the intelligent electric tailgate controller, and provide tailgate unlocking status information. Design expert with 20 years of industrial product background. Use Vehicle-level master chip, built-in intelligent learning algorithm to ensure the safety of the electric tailgate operation, anti-pinch and other functions Use Vehicle-level master chip, after the car is locked, the overall standby current of the control box is <1mA, which will not consume the original car battery.



Question & Answer

Q1. What are your terms of packing?

A: Generally, we pack our goods in carton box, suitable for shipping container.



Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.



Q3. How about your delivery time?

A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Q4. Can you produce according to the samples?

A: Yes, we can produce by your parameters.



Q5. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the sample fee is required.



Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery. Our products have over 800 tests to assure quality.



Q7: How do you make our business long-term and good relationship?

A1:We keep excellent quality, thoughtful after-sales service and competitive price to ensure our customers’ benefit; A2:We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from
