Wholesalde Price Toyota Hiace Mid-Roof Car Power Electric Tailgate Upgrade Your Car Trunk

China Dongguan Kaimiao Electronic Technology Co., Ltd certification
China Dongguan Kaimiao Electronic Technology Co., Ltd certification
Hello, Florence. We have tested one tailgate on Hyundai Tucson. We found that the product quality is good

—— Bolkar

they products are the best in the market we have used other company. there back up service is professiona.l

—— Mr. Nolan

I'm Online Chat Now

Wholesalde Price Toyota Hiace Mid-Roof Car Power Electric Tailgate Upgrade Your Car Trunk

Wholesalde Price Toyota Hiace Mid-Roof Car Power Electric Tailgate Upgrade Your Car Trunk
Wholesalde Price Toyota Hiace Mid-Roof Car Power Electric Tailgate Upgrade Your Car Trunk
video play

Large Image :  Wholesalde Price Toyota Hiace Mid-Roof Car Power Electric Tailgate Upgrade Your Car Trunk

Product Details:
Place of Origin: China
Brand Name: KiaMiao
Certification: Rohs, E-marks E24
Model Number: KMDS337 / KMDH337
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: 1 pc: US$230, ≥2 pcs: Negotiable
Packaging Details: 80*23*15cm,5.5-6 kg
Delivery Time: 3-5 working days
Payment Terms: T/T, PayPal, MoneyGram
Supply Ability: 2000 sets per month
Detailed Product Description
Car Model: Toyota HiAce Mid-Roof Year: 2010+ / 2020+

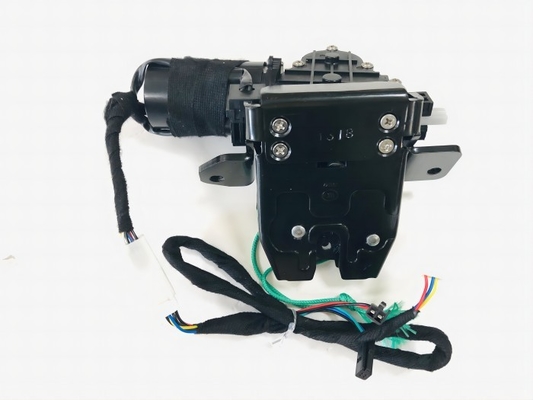

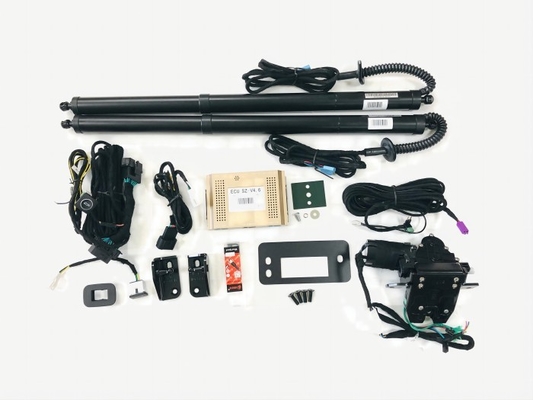

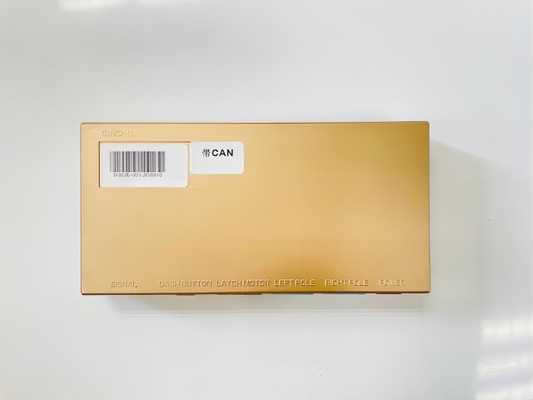

Storage Temperature:: -40℃ ~ +80℃ Accessory: ECU, Upper Suction Lock, Electric Struts, Electric Tailgate Button
Function: Remote Control, Set The Height, Automatic And So On Description: Double / Upper / Original Suction Lock
Rated Voltage:: 12V Quiescent Current:: < 2mA
Warranty: 1 Year
High Light:

Wholesalde Price Power Tailgate

,

Upgrade Your Car Trunk Power Tailgate

,

Mid-Roof Car Power Tailgate

Wholesalde Price Toyota Hiace Mid-Roof Car Power electric tailgate Upgrade Your Car Trunk

Wholesalde Price Toyota Hiace Mid-Roof Car Power Electric Tailgate Upgrade Your Car Trunk 0

What is power tailgate lift kits?

Hands-free power liftgate (Power tailgate lift) is a back-door system, the user of the vehicle controls the liftgate / tailgate opening and closing by pressing a key located on the dashboard or handheld or remoting the key, or by using any object operation in the corresponding region of the liftgate.



Technical Parameters:



Type:

Car Auto Parts / Auto Electronics

Product Name:

Power Tailgate Liftgate

Car Model:

Toyota Hiace Hi-Roof

Year:

2010-2020 / 2020+

Description:

Double pole with upper suction/orignal suction

Installation:

Plug and Play

Application:

Car Trunk

Service:

in stock / ODM / OEM

Rated Voltage:

12V

Operating Voltage:

9-16V

Working Current:

5A

Quiescent Currenty:

<2mA

Operating Temperature:

-30℃~80℃

Warranty:

1 year

Wholesalde Price Toyota Hiace Mid-Roof Car Power Electric Tailgate Upgrade Your Car Trunk 1

Innovation Point:

1. Intelligent Induction: Anti-pinch force setting / Anti-collision force setting. (When the system detects the intention of the car owner of manually open and close the door, power liftgate system will be in the auxiliary state automatically.
2. Intelligent Speed Control: Through intelligent control such as slow start and decelaration, it can ensure that the tailgate runs smoothly and impact of the system is slowed down. At the same time, the lift of the motor is prolonged.
3. Abnormal Scene Processing: Double pole load balancing. When a pole fails, the door can be prevented from being deformed. When the tailgate fails in a special scene, the system will automatically adjust the closing effort.
4. Fault Detection: When the drive circuit is faulty (low-voltage alarm, over-current protection), it will automatically cut off / automatically recover to ensure the safety of vehicles and equipment.
5. Ultimate Energy Saving: Ultra-low quiescent current (Standby Current: 1 mA). It can avoid that the vehicle can not start without power due to long-term parking.



Function Introduction

Wholesalde Price Toyota Hiace Mid-Roof Car Power Electric Tailgate Upgrade Your Car Trunk 2 Wholesalde Price Toyota Hiace Mid-Roof Car Power Electric Tailgate Upgrade Your Car Trunk 3

Smart avoid pinch, user-safety


The electric tailgate detects an obstacle when it is opend, that is, it stops automatically. The new version of power tailgate has added the newest W12 technology, which has the super anti-pinch funtion. (Even the ballons on the side will not be squeezed.) Temporarily stop the electric tailgate at any time.

Height Memory, use-friendly


The height of the tailgate can realize intelligent memory. The user only needs to adjust the tailgate to the appropriate height first, and then press and hold the function key until the drop is made. The next time the tailgate is opened, it can rise to the predetermined height. It is also convenient for lady or child.



Several Ways To Control The Electric Tailgate

Wholesalde Price Toyota Hiace Mid-Roof Car Power Electric Tailgate Upgrade Your Car Trunk 4 Wholesalde Price Toyota Hiace Mid-Roof Car Power Electric Tailgate Upgrade Your Car Trunk 5

CONTROL BY THE REMOTE,
ONE PRESS FIX ALL


Press on the remote control to open /
close the tail gate, even if your hands are
busy, you do this easily.

BUTTON ON TAIL GATE,
GREAT HAND CONTROL


A light touch on the button on tail gate,
it close as you require.

Wholesalde Price Toyota Hiace Mid-Roof Car Power Electric Tailgate Upgrade Your Car Trunk 6 Wholesalde Price Toyota Hiace Mid-Roof Car Power Electric Tailgate Upgrade Your Car Trunk 7

BUTTON IN DRIVER'S SEAT,
CONTROL EASILY


When you are in driver's seat, press the button to control tail gate easily.

FOOT SENSOR (OPTIONAL)


Inductive mode to open / close the electric tailgate.



Package & Shipping

Package Size: 80*23*15 cm
Gross Weight: ≈5.5-6 kg
Package Type: Neutral Packing
Delivery time: In stock: 1-2 working days
Out of stock: 5-7 working days

Wholesalde Price Toyota Hiace Mid-Roof Car Power Electric Tailgate Upgrade Your Car Trunk 8

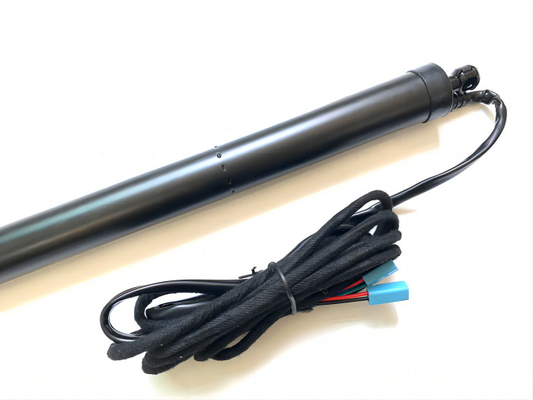

heartThrough the calculation of motion mechanics, the optimal design of the electric strut can be realized by adjusting the torque of the motor, the gearbox ratio, the lead of the screw, and the value of the spring force.
heartIP67 protection level
heartModule design. It is possible to complete the trial production of the product in a minimum amount of time and reduce the waiting time of the customer. The form test project can be completed before the design is finalized.
heartLow working noise - 52Db



Laboratory Test:

Test Description
Water-Proof Test Perform IPX4 waterproof rating standard, put the poles in the car, dripping for 10 minutes, flusing for many times.
Salt Spray Test Place the poles in 5% NACL solution of salt spray for 256 hours, wash the solution with flowing water, rinse with distilled water, stand it for 1-2 hours. Finally check if the pole is rusty.
High Temperature Test Double pole load balancing. When a pole fails, the door can be prevented from being deformed. When the tailgate fails in a special scene, the system will automatically adjust the closing effort.
Low Temperature Test When the drive circuit is faulty( low-voltage alarm, over-current protection), it will automatically cut off / automatically recover to ensure the safety of vehicles and equipment.
High and Low Temperature Ultra-low quiescent current(Standby Current:1 mA). It can avoid that the vehicle can not start without power due to long-term parking.



Packaging & Shipping Details:

Single Package Size: 80*23*15cm
Gross Weight: 6~6.5 kg
Package Type: Neutral Packing & Color Box
Delivery Time: In stock: 1-2 working days
Out of stock: 5-7 working days



FAQ:

1. How can I get the price?
- We usually quote within 24 hours after we get your inquiry (except weekend and holidays). If you are very urgent to get the price, pls email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
- Yes. Pls feel free to contact us.
3. What is your delivery time?
- It depends on the order quantity you placed.
- Usually we can ship with 3-5 working days, for small quantity, and about 20-25 days for large quantity.
4. What is your payment term?
- T/T, Western Union, PayPal and MoneyGram. This is negotiable.
5. What is the shipping method?
- It could be shipped by air, by sea or by express (EMS, UPS, DHL, FEDEX, TNT and so). Pls confirm with us before placing orders.
6. How do you make our business long-term and good relationship?
- We keep good quality and competitive price to ensure our customers benefit;
- We respect every customers as our friend and we sincerely do business and make friends with them, no matter where they come from.
