Dongguan Kaimiao Electronic Technology Co., Ltd
Home ProductsPower Tailgate

Factory Outlet Automatic Car Electric Tailgate Lift Topener With Remote Control For Toyota Hiace Hi-Roof

China Dongguan Kaimiao Electronic Technology Co., Ltd certification
China Dongguan Kaimiao Electronic Technology Co., Ltd certification
Hello, Florence. We have tested one tailgate on Hyundai Tucson. We found that the product quality is good

—— Bolkar

they products are the best in the market we have used other company. there back up service is professiona.l

—— Mr. Nolan

I'm Online Chat Now

Factory Outlet Automatic Car Electric Tailgate Lift Topener With Remote Control For Toyota Hiace Hi-Roof

Factory Outlet Automatic Car Electric Tailgate Lift Topener With Remote Control For Toyota Hiace Hi-Roof
Factory Outlet Automatic Car Electric Tailgate Lift Topener With Remote Control For Toyota Hiace Hi-Roof
video play

Large Image :  Factory Outlet Automatic Car Electric Tailgate Lift Topener With Remote Control For Toyota Hiace Hi-Roof

Product Details:
Place of Origin: China
Brand Name: KiaMiao
Certification: Rohs, E-marks E24
Model Number: KMDS253 / KMDH253 / KMDS333 / KMDH333
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: 1 pc: US$230, ≥2 pcs: Negotiable
Packaging Details: 80*23*15cm,5.5-6 kg
Delivery Time: 3-5 working days
Payment Terms: T/T, PayPal, MoneyGram
Supply Ability: 2000 sets per month
Detailed Product Description
Car Model: Toyota HiAce Hi-Roof Year: 2010+ / 2020+

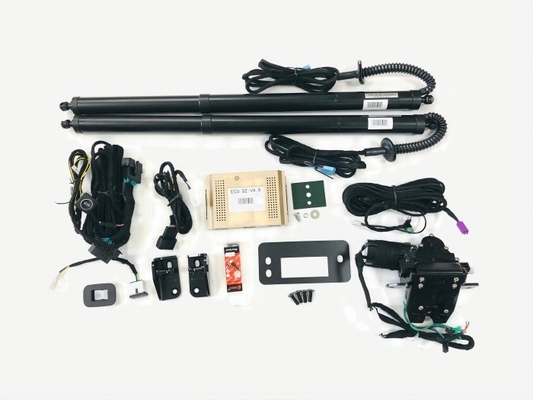

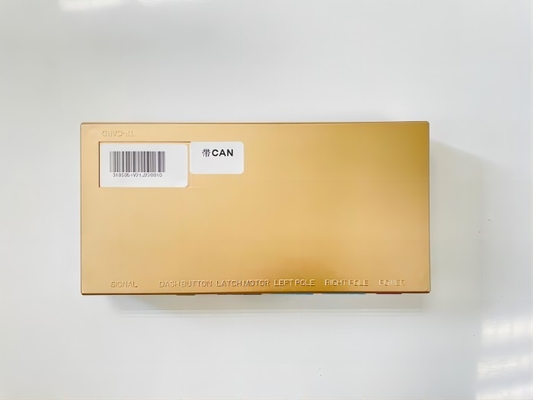

Material: Metal And Plastic Accessory: ECU, Upper Suction Lock, Electric Struts, Electric Tailgate Button
Function: Remote Control, Set The Height, Automatic And So On Remote Control: Original Car Key Fob
Kick Sensor: Optional Package Size: 80*23*15 Cm, 5-6kg
High Light:

automatic car electric tailgate lift

,

remote control electric tailgate lift

Factory outlet automatic car electric tailgate lift topener with remote control for Toyota Hiace Hi-Roof



What is power tailgate lift kits?

Hands-free power liftgate (Power tailgate lift) is a back-door system, the user of the vehicle controls the liftgate / tailgate opening and closing by pressing a key located on the dashboard or handheld or remoting the key, or by using any object operation in the corresponding region of the liftgate.



Technical Parameters:



Type:

Car Auto Parts / Auto Electronics

Product Name:

Power Tailgate Liftgate

Car Model:

Toyota Hiace Hi-Roof

Year:

2010-2020 / 2020+

Description:

Double pole with upper suction/orignal suction

Installation:

Plug and Play

Application:

Car Trunk

Service:

in stock / ODM / OEM

Rated Voltage:

12V

Operating Voltage:

9-16V

Working Current:

5A

Quiescent Currenty:

<2mA

Operating Temperature:

-30℃~80℃

Warranty:

1 year

Factory Outlet Automatic Car Electric Tailgate Lift Topener With Remote Control For Toyota Hiace Hi-Roof 0

Innovation Point:

1. Intelligent Induction: Anti-pinch force setting / Anti-collision force setting. (When the system detects the intention of the car owner of manually open and close the door, power liftgate system will be in the auxiliary state automatically.
2. Intelligent Speed Control: Through intelligent control such as slow start and decelaration, it can ensure that the tailgate runs smoothly and impact of the system is slowed down. At the same time, the lift of the motor is prolonged.
3. Abnormal Scene Processing: Double pole load balancing. When a pole fails, the door can be prevented from being deformed. When the tailgate fails in a special scene, the system will automatically adjust the closing effort.
4. Fault Detection: When the drive circuit is faulty (low-voltage alarm, over-current protection), it will automatically cut off / automatically recover to ensure the safety of vehicles and equipment.
5. Ultimate Energy Saving: Ultra-low quiescent current (Standby Current: 1 mA). It can avoid that the vehicle can not start without power due to long-term parking.



Factory Outlet Automatic Car Electric Tailgate Lift Topener With Remote Control For Toyota Hiace Hi-Roof 1



Feature:

Function Description
Remote Control The car owner can open and close the tailgate by pressing the tailgate of the vehicle, the remote control car key or using the foot sensing operation in the corresponding area of the tailgate, so as to avoid the object storage easily and quickly when the door is opened due to the inconvenience of holding too many objects into vehicle.
Multi-style Control A light touch on the button on tailgate,closes as you require.When you are in driver’s seat,press the button tocontrol tailgate easily.And we also offer foot sensor as an option,When you have no free hands to switch the tailgate, you can open it with your foot.
Intelligent Anti-Pinch Function When the tailgate is closed or opened , the sensor automatically senses whether there is an obstacle.When the tailgate opens or closes and encounters an obstacle, the tailgate moves in the opposite direction,effectively preventing the child from being injured or damaging the vehicle.
Emergency Blocking Function In an emergency, you can pause opening or closing the tailgate. During the opening or closing ofthe electric tailgate kit, the tailgate can be stopped at any time by the remote control key or the tailgate of the vehicle, and can be controlled as desired.
Height Memory Function The height of the electric tailgate can be adjusted. The owner can set the final opening height of the tailgate according to the usage habits.
Easy Installation Most of our customers can successfully install by themselves through our installation instructions.Plug and play(Some models need to be stripped)and no damage to the car body.
Factory Outlet Automatic Car Electric Tailgate Lift Topener With Remote Control For Toyota Hiace Hi-Roof 2

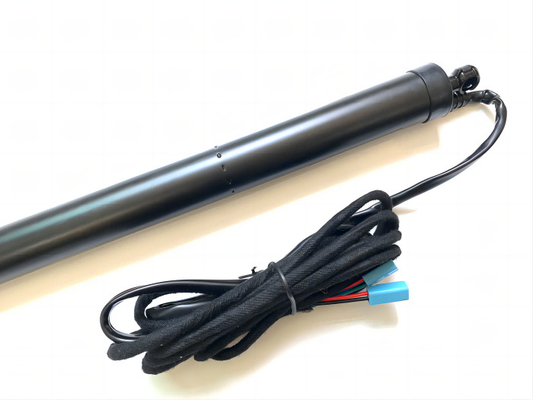

heartThrough the calculation of motion mechanics, the optimal design of the electric strut can be realized by adjusting the torque of the motor, the gearbox ratio, the lead of the screw, and the value of the spring force.
heartIP67 protection level
heartModule design. It is possible to complete the trial production of the product in a minimum amount of time and reduce the waiting time of the customer. The form test project can be completed before the design is finalized.
heartLow working noise - 52Db



Laboratory Test:

Test Description
Water-Proof Test Perform IPX4 waterproof rating standard, put the poles in the car, dripping for 10 minutes, flusing for many times.
Salt Spray Test Place the poles in 5% NACL solution of salt spray for 256 hours, wash the solution with flowing water, rinse with distilled water, stand it for 1-2 hours. Finally check if the pole is rusty.
High Temperature Test Double pole load balancing. When a pole fails, the door can be prevented from being deformed. When the tailgate fails in a special scene, the system will automatically adjust the closing effort.
Low Temperature Test When the drive circuit is faulty( low-voltage alarm, over-current protection), it will automatically cut off / automatically recover to ensure the safety of vehicles and equipment.
High and Low Temperature Ultra-low quiescent current(Standby Current:1 mA). It can avoid that the vehicle can not start without power due to long-term parking.

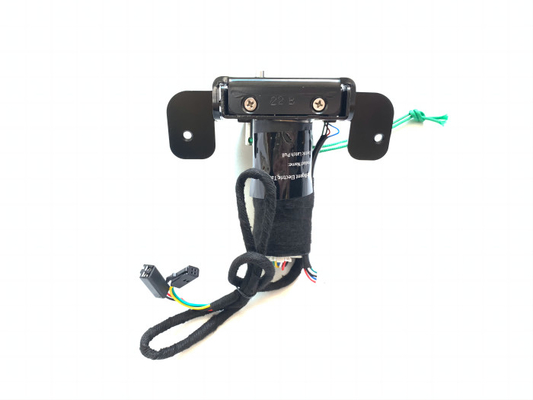

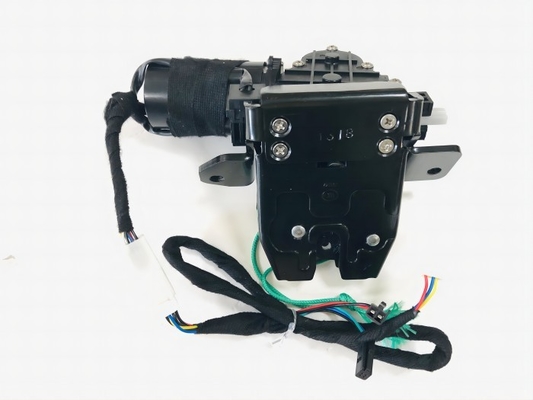

Advantages of Upper Suction Lock:

1. No damage installation
Use the original car lock mounting hole to install.
2. Safe
Configure the security cable to be pulled down and unlocked under abnormal conditions.
3. No need to debug
Installed in line with the original car.
4. Simple Wiring
Just take the central control to take power, and the rest are on the tailgate, connected to the control box.
5. Uniform Velocity
Slowly lock the first level, then it will automatically lock the second level.
6. Quiet
The door closing action is gentle and there is no impact sound.
7. Long life
All accessories meet China's 3C certification standards, no damage to the installation.

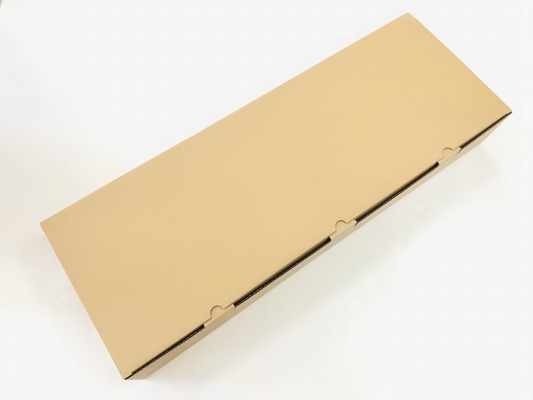

Packaging & Shipping Details:

Single Package Size: 80.6*18.6*16.5cm
Gross Weight: 6~6.5 kg
Package Type: Neutral Packing & Color Box
Delivery Time: In stock: 1-2 working days
Out of stock: 5-7 working days



FAQ:

1. How can I get the price?
- We usually quote within 24 hours after we get your inquiry (except weekend and holidays). If you are very urgent to get the price, pls email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
- Yes. Pls feel free to contact us.
3. What is your delivery time?
- It depends on the order quantity you placed.
- Usually we can ship with 3-5 working days, for small quantity, and about 20-25 days for large quantity.
4. What is your payment term?
- T/T, Western Union, PayPal and MoneyGram. This is negotiable.
5. What is the shipping method?
- It could be shipped by air, by sea or by express (EMS, UPS, DHL, FEDEX, TNT and so). Pls confirm with us before placing orders.
6. How do you make our business long-term and good relationship?
- We keep good quality and competitive price to ensure our customers benefit;
- We respect every customers as our friend and we sincerely do business and make friends with them, no matter where they come from.
