Renault Koleos The Power Hands Free Smart Electric Tailgate Lift With Auto Open

What’s the smart power tailgate lifter?

For the electric power tailgate lifter which means using on the rare door of one car, the rare door is opened/closed by using electric or remote control. If you want to open your rare door, only need press the button slightly by using remote control, the rare door would open automatically, if you want to close the rare door, also only press the close button or close button in the car and the remote-controlled key to the box will close itself.

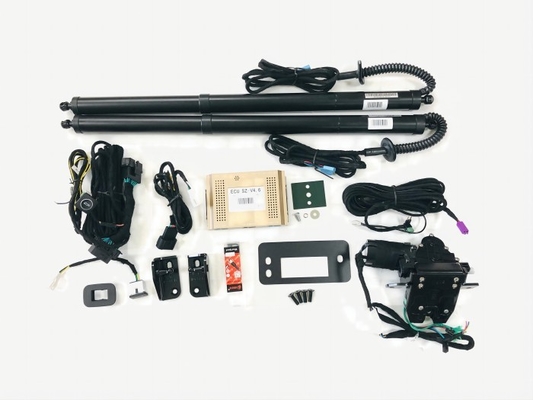

The main accessies of the electric power tailgate lifter:

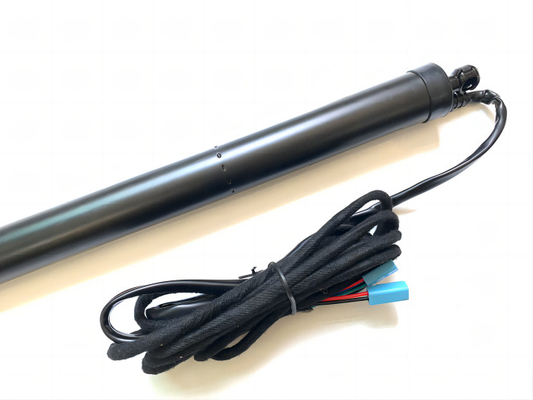

1.Electric Pole

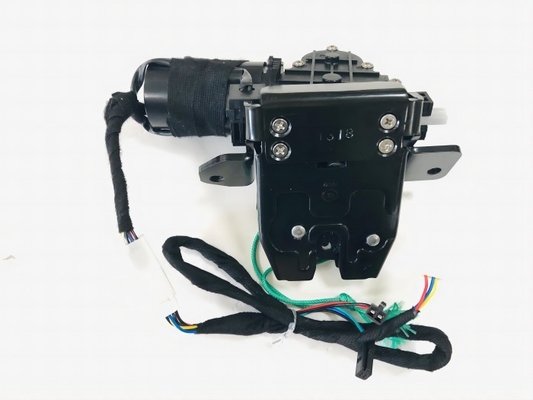

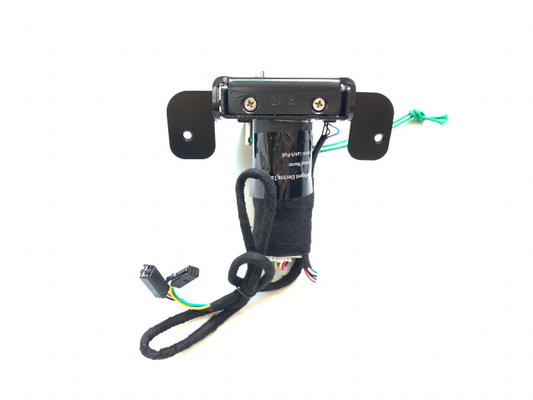

2.Electric tightening motor

3.Bump and plug assembly

4.Suitcase cover module

Electric power tailgate lifter Structure:

The basic structure of electric power tailgate lifter is made up of Two core shaft driving rods, the drive rod is made of an inner tube through a spindle drive & an outer tube composition, the motor & gear in the inner tube, a threaded spindle is driven on the threaded nut fixed inside the outer tube, the electric mainstay uses the electric spindle located in the inner motor of the support the opening and closing springs of the trunk cover, also play a supporting role in the opening operation.

The way of opening for electric power tailgate lifter:

The main function of electric power tailgate lifter:

What’s the advantage of the electric power tailgate lifter for consumer?

Why the car owner should pay the bill?

1. There are several ways to open/close the rare door, which has remote control, control by press button, anything you can do what you want.

2. Intelligent anti-clips can give users more care, it is not only the guardian of the family of car user

3. The electric power tailgate lifter can really understand the car owner

4. Discarded the original way of closing/opening the door to provide the remarkable products to the market

5. No Noise with big”bang” through electric power tailgate lifter

Attention:

1. We must make sure that there is no sundries, smallpox, back walls, etc. in the opening range of the tail door,To avoid the opening of the tail door because of the non - attention barrier which leads to the scraping of the tail door .

2. A "beep" alarm will be issued when the electric tail door is completely closed,Do not start the vehicle before you hear the closed alarm to avoid the accident happen with unlocked tail door.

3. When the electric rare door is abnormal, it need to be repaired at a regular vendor.

Innovation Point:

1. Intelligent Induction:

Anti-pinch force setting / Anti-collision force setting. (When the system detects the intention of the car owner of manually open and close the door, power liftgate system will be in the auxiliary state automatically.
2. Intelligent Speed Control:

Through intelligent control such as slow start and decelaration, it can ensure that the tailgate runs smoothly and impact of the system is slowed down. At the same time, the lift of the motor is prolonged.
3. Abnormal Scene Processing:

Double pole load balancing. When a pole fails, the door can be prevented from being deformed. When the tailgate fails in a special scene, the system will automatically adjust the closing effort.
4. Fault Detection:

When the drive circuit is faulty (low-voltage alarm, over-current protection), it will automatically cut off / automatically recover to ensure the safety of vehicles and equipment.
5. Ultimate Energy Saving:

Ultra-low quiescent current (Standby Current: 1 mA). It can avoid that the vehicle can not start without power due to long-term parking.

• Installation Instruction: WET-Koleos 2016+.pdf
