Peugeot 3008 Electric Tailgate Lift , Power Lift-Gate with Double Pole

China Peugeot 3008 Electric Tailgate Lift , Power Lift-Gate with Double Pole supplier
Peugeot 3008 Electric Tailgate Lift , Power Lift-Gate with Double Pole supplier Peugeot 3008 Electric Tailgate Lift , Power Lift-Gate with Double Pole supplier Peugeot 3008 Electric Tailgate Lift , Power Lift-Gate with Double Pole supplier Peugeot 3008 Electric Tailgate Lift , Power Lift-Gate with Double Pole supplier

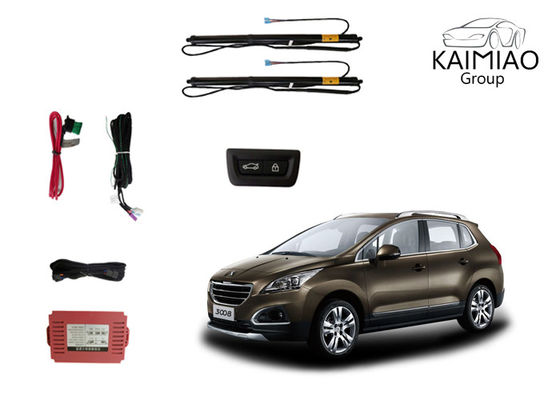

Large Image :  Peugeot 3008 Electric Tailgate Lift , Power Lift-Gate with Double Pole

Product Details:

Place of Origin: China
Brand Name: KaiMiao
Model Number: KM-PE001

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: 2 or 4 sets in one carton box
Delivery Time: 7-10 days after deposit
Payment Terms: D/A, D/P, T/T, PayPal
Supply Ability: 2000 sets per month
Contact Now
Detailed Product Description
Application: Peugeot 3008 Year: 2017+
Number Of Tests: > 800 Placement On Vehicle: Rear Door
Type: Modificaation Category Suction Lock: Bottom

Peugeot 3008 (2017+) Electric Tailgate Lift Manufactures ans Supplier, Power Lift-Gate with Double Pole

(Double Pole / Bottom Suction Lock)





KaiMiao Electric power tailgate lifter, One button opens the convenience car life & Principle of Electric Tailgate lifter



In order to make the door closed more smooth and quiet, Each electric power tailgate lifter is designed by an electric lock, that is the way the tail door is tightly closed, not quickly pressed with its own weight, it will be loud and hurt the tailgate rare door and glass, Tighten the door slowly and quietly with an electric lock, looking at the tail door from outside the car is like being sucked, feeling very refreshing.



It is necessary to upgrade the original manual tail door to electric opening and closing fuction, The most important part is the automatic telescopic electric putter, the interior is equipped with an electric motor and a screw. The action of stretching and shortening can be carried out through electric drive, As long as the original oil pressure rod is replaced, the action that allows the tail door to be automatically closed.



  • KaiMiao Group has already researched and development of the launch of the electric tail door suites. The Main parts are electric pole, electric suction, ECU Control box, waterpoof wire, The luggage compartment and the control button, and let the original manual tail door be upgraded to the funciton of electric opening and closing. The main components are electric telescopic push rods, its shape is like an oil pressue culm.It's just a bigger diameter. And the interior is also equipped with an electric motor and a screw.The act of stretching and shortening by electric drive.As long as the original oil pressure rod is replaced,The action that allows the tail door to be automatically closed.
  • The tail door and space for different weights,Electric putter with different load capacity and thickness should be selected. The door can not be opened, it’s big problem if shup up and hit the body sheet when closing. We need do the installation test before shipment.The product development time of each new car is not short to ensure quality and safety,
  • But let the tail gate be smooth to open/close, it’s not install two electric push rods to solve the problem, we must make sure that the push rods on both sides move as fast as they can,The length of expansion is the same, when the tail door is opened, it will not trun one side,These conditions need to be tested through constant load testing,Record related data,Then converts to the firmware program,Control and execute through the ECU master box,Not to mention the setting of security.







In order to ensure that the electric tail gate installed can have the original factory security, KaiMiao Group put a lot of protective mechanisms on the software, the first is Anti-pinch function,The electric tail door is closed or open at the moment, if there is a slight resistance, it will stop immediately, ensure the safety of people on the car, when the switch is executed, the gear position must be in the “P” gear position, And the central control lock is also in the state of unlocking, Avoid vehicles moving at the moment, the tail door was opened inadvertently, or the thief broke into the car.

Each car with electric power tailgate lifter from “KaiMiao group” ,after opening, the height of the tailgate can reach 175~185 centimeters between the original requirements, HondaOdyssey can reach 190 centimeters.The car has also been converted to the Tein shock absorber, The height of the car is much lower than the original factory.



As for the opening of the high level,Although the oil press rod of the original plant is replaced by an electric push rod, it is sure to ensure the height of the rear door,The original factory standard between 175-185cm To avoid inadvertently bumping into the tail of the head,Or influence the convenience of the extract,If the parking environment does not allow the rear door to open too high,This product also has the function of memory opening height.The height of the rear door can be adjusted to the height of the parking lot.To avoid inadvertent lacquer or sheet metal.



And the way to switch the tail door,The unlocking key can be transmitted through the remote control of the car & End door handle switch,A button added to the lower side of the rear door.Four switches near the driver's seat and so on,Except for the outside hand, the switch can only open the end of the door,The other three can execute the instructions on and off at the same time,It is quite convenient to use.



The unlocking key can be transmitted through the remote control of the car.Or a button added to the lower side of the rear door,Three switches, such as buttons near the driver's seat, will give instructions to the tail door.The gear position must be in the P gear position,The control lock is also in the unlocked state.







Electric Tailgate List

More than 200 car models, More and more car models are developed



Some models have some special conditions, please contact us for more details

Toyota RAV4 (2013-2018) / Highlander (2016+) / Wish (2016+) / Previa, Estima (2007+) / Fortuner (2009+) / Harrier (2015+) / Sienna (2015+) / Sienta (2017+) / Camry (2018) / Levin / Land Cruiser (2008+) / Hiace High Roof (2010+) / Hiace Short Roof (2010+) / Alphard, Vellfire (2005+) / Innova (2016+) / Voxy, Noah (2014+) / Avanza (2017+) / Prius (2017+) / Prius A (2012+) / Venza (2015+) / CHR (2016+)
Volkswagen Tiguan (2010+) / Tiguan L (2017+) / Sagitar (2015-2018) / T-Roc (2018) / Touareg (2011-2017) / Magotan B8 (2016-2017) / Magotan B7 (2011-2016) / Golf 7 (2017) / Passat (2014+) / CC (2015+) / Multivan T5 (2012-2016) / Caravelle T6 (2016+) / Beetle (2002-2016) / Sharan (2012-2018)
Honda HRV (2015+) / XRV (2015+) / Vezel (2015+) / RK5 (2009+) / Odyssey (2016+) / CRV (2017+) / Shuttle (2017+) / Crosstour (2011+) / Elysion (2016+) / RG1 (2005-2009) / Mobilio (2018+) / BRV (2018+) / Avavcier URV (2017+) / Accord (2017) / Civic (2016+)
Nissan C26 (2010+) / C27 (2018+) / C25 (2017+) / Elgrand (2017) / X-Trail (2014-2018) / Livina (2016+) / Terra (2017+) / Tiida (2009+) / Qashqai (2016+) / Patrol Y62 (2012+) / NV200 / Murano (2015+)
Hyundai IX45 (2014+) / IX35 (2012+) / IX25 (2015+) / Tucson (2016+) / H1 (2010+)
Kia Sorento (2016+) / KX5 (2016+) / KX3 (2015+) / KX7 (2017+) / Carens (2013) / Sportage (2016) / Niro (2018+) / Canival (2017)
Ford Kuga, Escape (2012+) / Edge (2015+) / Focus (2013+) / Mondeo (2013+) / Taurus (2017+) / Everest (2016+)
Land Rover Land Rover Sport (2015+) / Range Rover Evoque (2013-2018) / Discovery 4 (2015-2016) / Discovery 5 (2017) / Range Rove (2013+) / Freelander (2015+)
Chevrolet Orlando (2018) / Capive (2015+) / Equinox (2017+)
Citroen DS6 (2015) / DS7 (2015) / Aircross C5
Mazda CX-5 (2012+) / CX-4 (2014+) / Mazda 5 (2012+) / Mazda 6 (2012+) / Mazda 8 (2012+) / Mazda 3 Axela (2016+)
BMW X1 (2012+) / 5 Series (2012+) / 3 Series (2013+) / 2 Series 218i (2016) / 1 Series (2017+) / X3 (2011+) / X5 (2012-2015)
Mercedes-Benz E Class (2011+) / S Class (2014+) / C Class (2012+) / C Class Coupe (2015+) / GLC (2016+) / GLA (2015+) / CLA (2015+) / Vito (2016+)
Audi A2L (2018+) / Q3 (2013+) / A3 (2014+) / A5 Sportback (2010-2016) / A5 Coupe (2018) / A6L (2012+) / A4L (2008+)
Peugeot 3008 (2013+) / 4008 (2017+) / 5008 (2017) / 308 / 308SW
Renault Kadjar (2016+) / Koleos (2017+)
Lexus NX200 (All Series) / NX200T (2015+) / RX200T (2016-2017) / RX300 (2016-2017) / RX270 (All Series) / ES (2013-2018)
Mitsubishi ASX (2013+) / Outlander (2014+) / Pajero (2012+) / X-Pander (2018+) / Pajero Sport (2016+) / Eclipes Cross (2018+) / Inger (2018)
Cadillac XTS (2013+) / XT4 (2018) / XT5 (2016+) / SRX (2012+) / CT6 (2016+)
Buick GL8 (2015-2016) / GL8 28T (2017) / GL8 25S (2017) / GL6 (2017+) / Envision (2014+)
Subaru Forester (2015+) / XV (2014+) / Levore (2015+)
Isuzu Mu-X (2015+)
Volvo XC60 (2011/2013/2015/2017/2018) / S60L (2014+) / S90 (2017+)
Skoda Superb (2016+) / Octabia (2015+) / Kodiaq (2017)
Jeep Cherokee (2016+) / Grand Cherokee (2014+) / Compass (2017+)
Infiniti QX30 (2017+) / QX50 (2013-2016)
Opel Mokka-X (2016+) / Insignia (2016+)
Luxgen U5 (2017+) / U6 (2012+)
Geely Atlas (2016+) / Emgrand GS (2016+) / Battle (2018+)
Haval H7 (2016) / H8 (2016) / H2 (2017)
Borgward BX5 (2016-2017) / BX7 (2016+)
Jaguar XE (2015+) / XFL (2017+)
MG GS (2015+) / MG6 (2017+) / ZS (2017+)
Masarati Levante (2017+) / Ghibli (2013+)
Ssangyong Tilivo (2016+)
Tesla Model-S
Suzuki SX4 / Vitera
Porsche Cayenne (2012)
