Product Details:
Payment & Shipping Terms:
|
| Car Model: | Volvo XC60 | Year: | 2010-2017 / 2018+ |
|---|---|---|---|
| Type: | Power Liftgate Kit | Warranty: | 1 Year |
| Test Times: | 100000 Times | Material: | Metal And Plastic |
| Kick Sensor: | Optional | Quiescent Current: | <2mA |
| High Light: | power tailgate lift system,tailgate lift kit |
||
The smart electric tailgate is a brand-new car intelligent modification system. The driver can control the closing of the tailgate through the remote control of the car key, pressing the vehicle tailgate key and the cab. In addition, it also has functions such as intelligent anti-pinch, high-level memory, etc., which integrates intelligence, convenience and humanization, making your car even more powerful in an instant.
The intelligent electric tailgate can solve the inconvenience caused by the usual tedious trunk operation to daily life, such as not limited to being out of reach, too many things on hand, and not closing tightly.

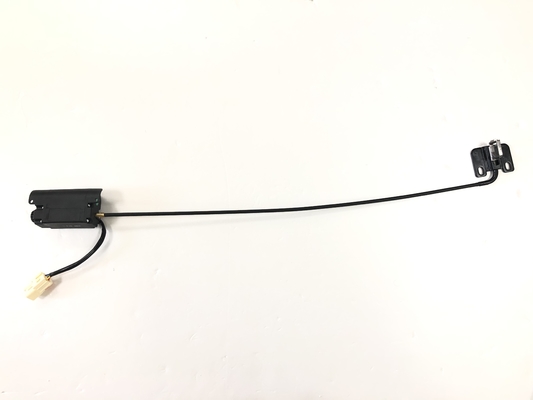

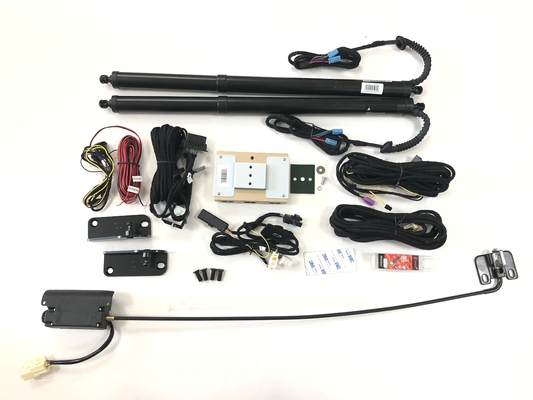

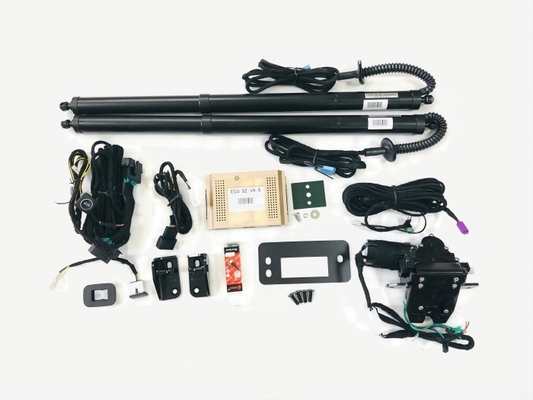

The intelligent electric tailgate lift kit can open, close and lock the luggage electrically, which can be triggered by key fob, the switch button at the trunk, the switch in the cab, the foot sensor switch, etc. It has the characteristics of anti-pinch, self-adjusting height, speed control, abnormal fault detection, non-destructive installation and so on.
Using the original car standard electric suction device, the door opening and closing process is smoother and quieter. The kit runs smoothly, elegantly and intelligently, without extra noise.
|
|
|
|
|
1. Bracket installation reversed: The door will not be closed very well.
2. The bracket screws are not replaced as required: The door will not be closed very well and the rod is damaged.

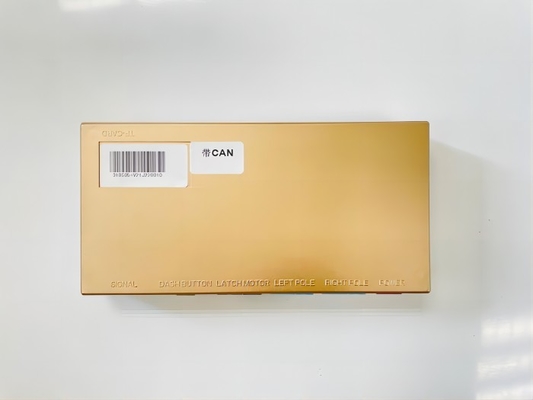

3. The control box connector is not inserted in place and is loose: Anti-pinch pressure sensor is not sensitive.
4. Pole ball head and compression springs are not installed properly: Rod shedding during use.(check after installation)
5. The connector is not inserted into the correct position or is loose: Functional failure.

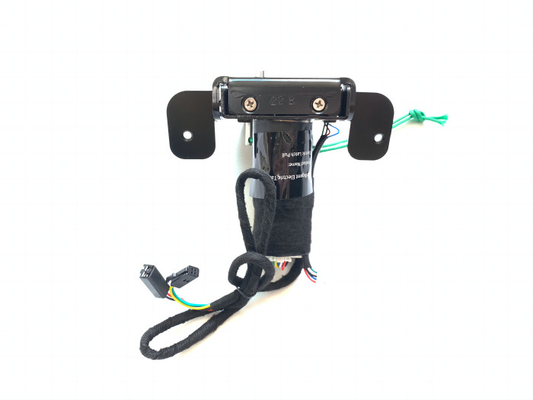

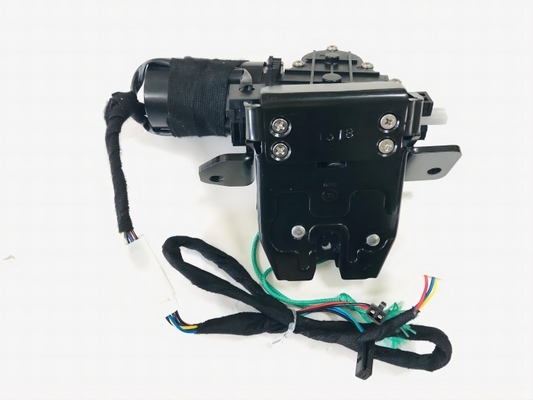

6. The electric suction lock and the lock cannot be deviated, otherwise the door will not be closed and the door gap is too large, resulting in a loud sound.
7. The car has not been started for a long time, resulting in low power: When the door is opening and closing, the electric tailgate does not work properly and it is necessary to
restart the engine.
8. Installing more than 5 kg of soundproof cotton on the tailgate, it will affect the switch gate force and need the controller to increase the force.
9. First installation: Press the tailgate closing button for 3-5 seconds to hear a long beep, then press it again to hear 2 sound “didi”. Finally, the installation is successful.(If there is no such operation, the electric tailgate will be abnormal when it is running.)
10. The remote control cannot open the door: Please check whether the central control line is connected or not.
11. Verify whether the current is normal or not: You can use the central control line to touch the battery 3 times. If the trunk door is opened properly, the current is normal. So if the remote control cannot open the door, it is because the central control line is not connected.
A variety of opening methods,making opening more convenient and feet.
