Product Details:
Payment & Shipping Terms:
|
| Car Model: | Skoda Octavia Estate / Octavia Liftback / Octavia Pro | Year: | 2013-2019 / 2019+ |
|---|---|---|---|
| Material: | Metal And Plastic | Function: | Remote Control, Set The Height, Automatic And So On |
| Operating Temperature: | -30℃~80℃ | Package Size: | 80*23*15 Cm |

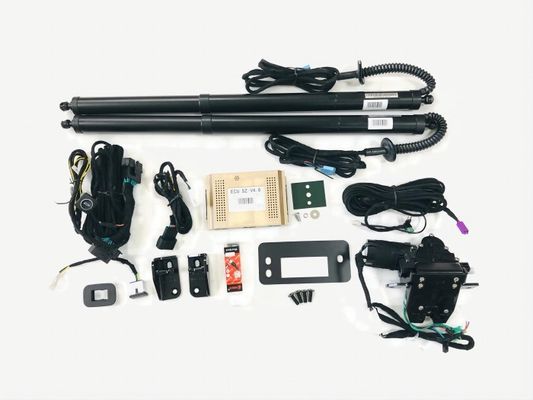

| ECU Color: | Gold / Black | Accessory: | ECU, Upper Suction Lock, Electric Struts, Electric Tailgate Button |
| High Light: | power tailgate lift system,tailgate lift kit |
||
The smart powered lift gate is a brand-new car intelligent modification system. The driver can control the closing of the tailgate through the remote control of the car key, pressing the vehicle tailgate key and the cab. In addition, it also has functions such as intelligent anti-pinch, high-level memory, etc., which integrates intelligence, convenience and humanization, making your car even more powerful in an instant.
The intelligent electric tailgate can solve the inconvenience caused by the usual tedious trunk operation to daily life, such as not limited to being out of reach, too many things on hand, and not closing tightly.
When the motor is not working, the resistance of the screw rod, the resistance of the motor gear box, the spring force and the gravity of the door form a balance torque to keep the door hovering at any position.
When the motor is working, the motor torque breaks the balance. According to the motor torque direction, the strut performs telescopic movement to drive the door to open and close.
| 1. Bracket installation reversed: The door will not be closed very well. |
| 2. The bracket screws are not replaced as required: The door will not be closed very well and the rod is damaged. |
| 3. The control box connector is not inserted in place and is loose: Anti-pinch pressure sensor is not sensitive. |
| 4. Pole ball head and compression springs are not installed properly: Rod shedding during use.(check after installation) |
| 5. The connector is not inserted into the correct position or is loose: Functional failure. |
| 6. The electric suction lock and the lock cannot be deviated, otherwise the door will not be closed and the door gap is too large, resulting in a loud sound. |
|
7. The car has not been started for a long time, resulting in low power: When the door is opening and closing, the electric tailgate does not work properly and it is necessary to restart the engine. |
| 8. Installing more than 5 kg of soundproof cotton on the tailgate, it will affect the switch gate force and need the controller to increase the force. |
| 9. First installation: Press the tailgate closing button for 3-5 seconds to hear a long beep, then press it again to hear 2 sound “didi”. Finally, the installation is successful.(If there is no such operation, the electric tailgate will be abnormal when it is running.) |
| 10. The remote control cannot open the door: Please check whether the central control line is connected or not. |
| 11. Verify whether the current is normal or not: You can use the central control line to touch the battery 3 times. If the trunk door is opened properly, the current is normal. So if the remote control cannot open the door, it is because the central control line is not connected. |
The mechanical strength has passed the national compulsory 3C certification, and the reliability is guaranteed. The main components are purchased from the OEM supply chain, which is more stable. The service life has been actually tested by many customers to meet the requirements of the car factory. If the electric suction function is not normal, the tailgate can also be unlocked manually.
When the tailgate is about to close, the strut can rely on the electric suction function to achieve the closing action without accelerating and afterburning, and the effect is very good.
