Lexus IS Electronic Automatic Liftgate Opener and Closer with Smart Control

China Dongguan Kaimiao Electronic Technology Co., Ltd certification
China Dongguan Kaimiao Electronic Technology Co., Ltd certification
Hello, Florence. We have tested one tailgate on Hyundai Tucson. We found that the product quality is good

—— Bolkar

they products are the best in the market we have used other company. there back up service is professiona.l

—— Mr. Nolan

I'm Online Chat Now

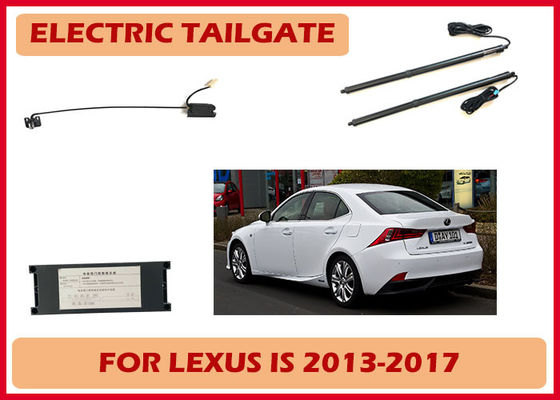

Lexus IS Electronic Automatic Liftgate Opener and Closer with Smart Control

Lexus IS Electronic Automatic Liftgate Opener and Closer with Smart Control
Lexus IS Electronic Automatic Liftgate Opener and Closer with Smart Control
video play

Large Image :  Lexus IS Electronic Automatic Liftgate Opener and Closer with Smart Control

Product Details:
Place of Origin: China
Brand Name: Kaimiao
Certification: Rohs, E-marks E24
Model Number: KMYX745
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: 1 pc: US$220, ≥2 pcs: Negotiable
Packaging Details: 80*23*15cm,5.5-6 kg
Delivery Time: 3-5 working days
Payment Terms: T/T, PayPal, MoneyGram
Supply Ability: 2000 sets per month
Detailed Product Description
Car Model: Lexus IS Year: 2013-2017
Package Size: 80cm*19cm*13cm Accessory: ECU, Upper Suction Lock, Electric Struts, Electric Tailgate Button
Lock Type: Latch Suction Lock Warranty: 1 Year
Rated Voltage: 12V Material: Matel And Plastic
High Light:

electric tailgate lift

,

aftermarket power liftgate kit

,

Lexus NX200 Smart Automatic Tailgate Lift

Lexus IS Electronic Automatic Liftgate Opener and Closer with Smart Control







How does the electric tailgate lift work?



-Control by original car key fob. Long press the unlock button / tailgate button, the tailgate can be easily lifted and loweres. Do not change your operating habits, let you control your car trunk as you like!



-Supports manual pull-down start mode, that is, the door is forcibly pulled down/pulled by human hands, and it can also wake up the electric work to close the door.



-Press the tailgate switch button and the dashboard button to open and close the tailgate.



-The height of the tailgate raised can be adjusted at will. You can set the final opening height according to your own height and usage habits, and say goodbye to the embarrassment of being out of reach. After manually pushing the tailgate to a reasonable position, press and hold the tailgate installation button for more than 3 seconds, and the setting is successful when you hear a beep





Lexus IS Electronic Automatic Liftgate Opener and Closer with Smart Control 0



Functions:



1. Soft Close Tailgate

2. Remote Control

3. Manual Control

4. Intelligent Safety System

5. Customized Height Adjustment

6. OEM Fit

7. Sound & Light Alarm

8. Easy Installation



Common Problems:



1.Bracket installation:

If there is a special bracket, you need to replace the electric tailgate special bracket.

Notice: Unable to reverse, otherwise the trunk door will not be closed.

2.The bracket screws are not replaced as required:

The trunk door will not closed properly and the rod will be damaged.

3.The control box connector is not inserted into the correct position or is loose:

Anti-pinch pressure sensor is not sensitive.

4.Pole ball head and compression springs are not installed properly:

Rod shedding during use(check after installation)

5.The connector is not inserted into the correct position or is loose: Functional failure.

6.The electric suction lock and the lock cannot be deviated, otherwise the door will not be closed and the door gap is too large, resulting in a loud sound.

7.The car has not been started for a long time, resulting in low power:

When the door is opening and closing, the electric tailgate does not work properly and it is necessary to restart the engine.

8.Installing more than 3 kg of soundproof cotton on the tailgate, it will affect the switch gate force and need the controller to increase the force.

9.First installation: Press the tailgate closing button for 3-5 seconds to hear a long beep, then press it again to hear 2 sound “didi”. Finally, the installation is successful.

(If there is no such operation, the electric tailgate will be abnormal when it is running.)

10.The remote control cannot open the door: Please check whether the central control line is connected or not.

Verify whether the current is normal or not: You can use the central control line to touch the battery 3 times. If the trunk door is opened properly, the current is normal. So if the remote control cannot open the door, it is because the central control line is not connected.



The working principle of the strut:


When the motor is not working, the resistance of the screw rod, the resistance of the motor gear box, the spring force and the gravity of the door form a balance torque to keep the door hovering at any position.


When the motor is working, the motor torque breaks the balance. According to the motor torque direction, the strut performs telescopic movement to drive the door to open and close.



Features:


Low noise, stable and reliable. Combined with the controller, the height and anti-pinch functions can be set, and the installation is simple
Intelligent double Hall automatic fulcrum has adjustment protection to achieve comfortable and smooth door opening and closing



In the design stage, the arrangement plan of the strut is proposed, and the arrangement of the strut is checked and analyzed. Optimize the design of the tailgate system's high temperature, low temperature, normal temperature opening and closing force characteristics, balance angle characteristics, elastic characteristics of the built-in spring, positive and negative slope environment and other factors, and output the design verification.





Lexus IS Electronic Automatic Liftgate Opener and Closer with Smart Control 1



In the past few years, the aftermarket of auto car has reached a trillion market scale, which means that the auto service industry has become a "million-dollar" club. In the automotive electronics market, navigation and smart rearview mirror products have lost their original market because of front loading competition. For the reason that many new products began to gradually enter the eyes of consumers in automotive aftermarket from 2017, stimulate the consumer market. Smart auto electric tailgate lift will be a new trend of automotive aftermarket.



FAQ:



Q: What is the brand name of this product?

A: The brand name of this product is Kaimiao.



Q: Where is this product manufactured?

A: This product is manufactured in China.



Q: Can this product be installed on any car model?

A: This product is designed to be compatible with most car models, but it is recommended that you check the specifications to make sure it will fit your car.



Q: How much weight can this product lift?

A: This product can lift up to 150 kg.



Q: Is installation of this product easy?

A: Installation of this product is relatively easy and can be done with basic tools. However, it is recommended that you have some prior experience with car repairs or seek professional installation services.
