Honda Shuttle Intelligent Electric Tailgate Lifter with Control By The Remote

Honda Shuttle Intelligent Electric Tailgate Lifter with Control By The Remote
Honda Shuttle Intelligent Electric Tailgate Lifter with Control By The Remote
video play

Large Image :  Honda Shuttle Intelligent Electric Tailgate Lifter with Control By The Remote

Product Details:
Place of Origin: China
Brand Name: KaiMiao
Certification: Rohs, E-marks E24
Model Number: KMDX189/KMDX446
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: 80*23*15cm,5.5-6 kg
Delivery Time: 3-5 working days
Payment Terms: D/A, D/P, T/T, PayPal
Supply Ability: 2000 sets per month
Detailed Product Description
Application: Honda Shuttle Year: 1 Year
Color: Black Kick Sensor: Optinal
Function: Remote Control, Anti-pinch, Memory Height And So On Rated Voltage: 12V
Quiescent Current: <2mA
High Light:

power hatch lift kit

,

tailgate lift kit

,

Honda Shuttle Electric Tailgate Lifter Kit

Honda Shuttle Intelligent Electric Tailgate Lifter with Control By The Remote





What is the Feature for power liftgate?

1.USE Original Remote key to open/close tailgate
2.Touch button in tailgate to open/close
3.Press button to open/close tailgate in driver’s seat
4.Tailgate will bounce back automatically once it sense obstacles while closing
5.Customizable tailgate height, suits to everyone
6.Sound alarm when tailgate is closing or opening



Product Description

Hands-free power tailgate (Power tailgate lift) is a back-door system, the user of the vehible controls the liftgate / tailgate opening and closing by pressing a key located on the dashboard or handheld or remoting the key, or by using any object operation in the corresponding region of the liftgate.



Honda Shuttle Intelligent Electric Tailgate Lifter with Control By The Remote 0



Honda Shuttle Intelligent Electric Tailgate Lifter with Control By The Remote 1 Car Model: Honda Shuttle
Year: 2015-2018/2019-2022
Installation Time: 1-1.5 hour
Product No.: KMDX189/KMDX446
Working Temperature: -40℃ ~ +80℃
Warranty: 1 year
Application: Car Rear Trunk



Honda Shuttle Intelligent Electric Tailgate Lifter with Control By The Remote 2

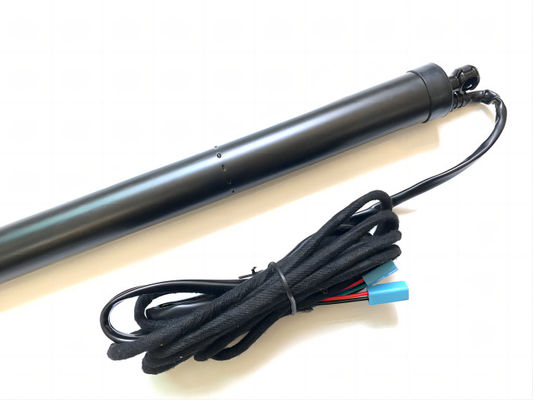

The working principle of the strut:
When the motor is not working, the resistance of the screw rod, the resistance of the motor gear box, the spring force and the gravity of the door form a balance torque to keep the door hovering at any position.
When the motor is working, the motor torque breaks the balance. According to the motor torque direction, the strut performs telescopic movement to drive the door to open and close.



Features:
Low noise, stable and reliable. Combined with the controller, the height and anti-pinch functions can be set, and the installation is simple.
Intelligent double Hall automatic fulcrum has adjustment protection to achieve comfortable and smooth door opening and closing.

In the design stage, the arrangement plan of the strut is proposed, and the arrangement of the strut is checked and analyzed. Optimize the design of the tailgate system's high temperature, low temperature, normal temperature opening and closing force characteristics, balance angle characteristics, elastic characteristics of the built-in spring, positive and negative slope environment and other factors, and output the design verification.

Honda Shuttle Intelligent Electric Tailgate Lifter with Control By The Remote 3

Function Introduction

Honda Shuttle Intelligent Electric Tailgate Lifter with Control By The Remote 4 Honda Shuttle Intelligent Electric Tailgate Lifter with Control By The Remote 5

Smart avoid pinch, user-safety


The electric tailgate detects an obstacle when it is opend, that is, it stops automatically. The new version of power tailgate has added the newest W12 technology, which has the super anti-pinch funtion. (Even the ballons on the side will not be squeezed.) Temporarily stop the electric tailgate at any time.

Height Memory, use-friendly


The height of the tailgate can realize intelligent memory. The user only needs to adjust the tailgate to the appropriate height first, and then press and hold the function key until the drop is made. The next time the tailgate is opened, it can rise to the predetermined height. It is also convenient for lady or child.



Several Ways To Control The Electric Tailgate

Honda Shuttle Intelligent Electric Tailgate Lifter with Control By The Remote 6 Honda Shuttle Intelligent Electric Tailgate Lifter with Control By The Remote 7

CONTROL BY THE REMOTE,
ONE PRESS FIX ALL


Press on the remote control to open /
close the tail gate, even if your hands are
busy, you do this easily.

BUTTON ON TAIL GATE,
GREAT HAND CONTROL


A light touch on the button on tail gate,
it close as you require.

Honda Shuttle Intelligent Electric Tailgate Lifter with Control By The Remote 8 Honda Shuttle Intelligent Electric Tailgate Lifter with Control By The Remote 9

BUTTON IN DRIVER'S SEAT,
CONTROL EASILY


When you are in driver's seat, press the button to control tail gate easily.

FOOT SENSOR (OPTIONAL)


Inductive mode to open / close the electric tailgate.



Package & Shipping

Package Size: 80*23*15 cm
Gross Weight: ≈5.5-6 kg
Package Type: Neutral Packing
Delivery time: In stock: 1-2 working days
Out of stock: 5-7 working days

Honda Shuttle Intelligent Electric Tailgate Lifter with Control By The Remote 10

Honda Shuttle Intelligent Electric Tailgate Lifter with Control By The Remote 11

Honda Shuttle Intelligent Electric Tailgate Lifter with Control By The Remote 12
