Payment & Shipping Terms:
|Products Name:||Smart Car Alarm||Type:||One Way|
|Control Distance:||More Than 60 Meters||Remote Control:||Smart Key|
|Use Life:||More Than 5 Years||Voltage:||DC 12V|
|Code Type:||Hopping Code||Compatiable:||Working With GPS Module|

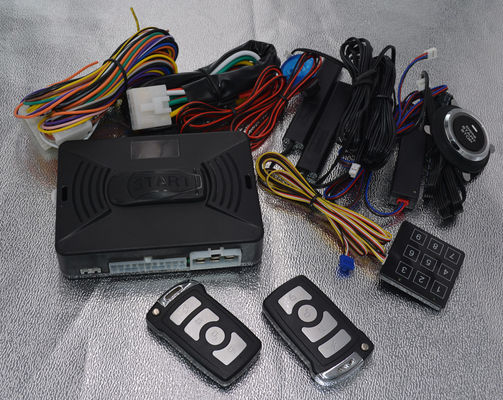

engine start stop button kit,
car security alarm system
alarm online sale discount price china supplier
2017 -2018 new product:
passcodes car alarm system with start stop button and bypass output
passwords emergency lock or unlock car door
supporting petrol or diesel car
supporting manual or auto transmission car
this product does not include shock sensor,gps,ultrasonic sensor,if needs it adds extra value
if your car has chip immobilizer, you need to buy bypass or use other way to avoid chip immobilizer
as for package box,we will use any one that we have in stock,thanks
1. this product is compatiable with cardot gps module,it will add mobile app control car function if you buy this gps module.
2.this product doesn't support electric steering wheel lock car!
How to use passcode key code:
How to use passwords?
1. power on passwords key pad,blue light is on for 1 second and off,
it means that you can input passwords;
2. Touching any number button,blue led is on and off when hand off;
3. Red LED will blink slowly when inputting each number password,the interval time between
the first number input and the second number must be less than 5 seconds.or else your passwords input is invalid after 5 seconds,you need to input passwords again;
4. After finishing passwords input,red led and blue led will blink 3 times at the same time
if passwords input is wrong;if passwords input is correct,red led and blue led will blink
one time slowly to confirm correct operation;
5. Wrong passwords input times are more than 10 within 10 minutes,passwords key pad will be locked,red led and blue led will blink alternatively,any passwords input is invalid.after 30 minutes,system will give alarm hints if you still input wrong passwords more than 3 times.
How to reset default passwords 123456?
Within 3 seconds,press learning button 3 times swiftly on the back of the passwords key pad and then hold it when press the third time,red led and blue led will blink 1 time slowly at the same time,passwords reset is successful.
How to change passwords?
1. Holding the learning button of passwords key pad until red led keeps on,at this time,system is in learning status.
2. firstly input old passwords,red led and blue led will blink 2 times slowly if old passwords input is correct,now you can input new passwords one time,red led and blue led will blink 4 times slowly at the same time if new passwords input is correct,and then you input same new passwords again to confirm.new passwords set is successful if the first new passwords and the second passwords input are same,red led and blue led will blink one time to exit learning status.
1. In the process of learning code,system auto exits learning code mode if no any passwords input operation within 30 seconds.
2. In the process of learning code,old passwords input is wrong or new passwords input of 2 times is not same,blue led and red led will blink 10 times swiftly,and then it exits learning status,old passwords keep unchanged status as it is.
1. Passive keyless entry
handfree lock or unlock car door without pressing remote lock or unlock button.
when you approach to the car,car door is auto unlocked at 1-3M,
when you leave the car at 1-3M,car door is auto locked.
2. Push start stop engine
press the footbrake and press start or
stop button to turn on car engine or turn off the car engine
without pressing the footbrake,it is ACC-ON-OFF circle
when you press start button
3. Remote start stop engine
in arming,hold remote third button more than 3seconds to start engine,
press lock button 1 time to stop engine!
4. Hopping code protection
5. handbrake auto checking
this is for remote start security purpose!
6. side door alarm
in arming,if someone try to open car door illegally,our system will make sound alarm
7. central lock automatication
when you press the brake and drive the car,car door is auto locked,and then
when you turn off the car engine,car door is auto unlocked!
this function can be disabled!
8. remote open trunk
hold the unlock button for more than 2seconds,trunk is auto open!
9. RFID anti-cpllision tech
10. FHSS high security design
11. outside learning button
12. ultrasonic sensor output
13. supporting auto transmission or manual transmission car
14. supporting diesel or petrol car
15. support+/- siren or +/- trunk direciton conneciton without adding any relays
16. passwords keyless entry without smart key remotes
if smart key battery is dead or is broken,driver still can enter the car and drive!
17. outside learning button or emergency reset button
if remote battery is dead,at this time,alarm is triggered,
you can hold the reset button to release alarm.
18. 3D smart key remotes
19. 3D pke antennas
20. fuel path wire connection or not by dip setting
21. smart anti-hijacking mode
22. shock sensor alarm
23. open door flashing light
