Audi Q5/Q5L Automatic Electric Power Running Boards Open and Close Quietly

What is the electric running boards?

The intelligent electric pedal is simple, safe and firm to install so that more car owners can trust it. Combined with the ground clearance and door space, a stepped foot pedal structure is designed. The ground clearance between the pedals is between 130mm and 180mm, and the gap between the pedals and the body sill is between 50mm and 130mm, which is convenient for getting on and off the vehicle.

For the matching of the body, the non-destructive installation method, the chassis height is not reduced, the passability is not affected, and the user experience details are modified, we have been working hard to improve. Dare to change and persevere, and impress users with sincerity. The super load-bearing and the body are closely matched to create a shocking appearance quality and perfect after-sales service, so that the owner can have a more perfect use experience every day.

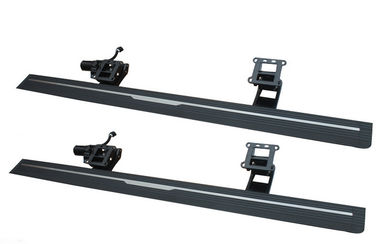

SHOW DETAILS:

	End Design Beautiful arc design, so that the pedal is more attached to the body, the appearance of more beautiful.
	Reinforcement screw Alloy die casting reinforcement nut, reinforcement more secure, strong. Adopted advanced row 4 Neckar nut reinforcement design technology, effectively ensuring the pedal force uniform and strong Neckar screw fixation and make the pedal never loose.
	Thickened End The pedal end uses the high quality ABS engineering material, cold resistant, high temperature resistant, anti bump etc.. To avoid the body is not necessary to scratch, toeffectively protect the safety, but also play a beautiful role.
	Aviation Aluminum Using high-quality thick antioxidant aviation aluminum, die-casting aluminum frame collocation, hale and hearty structure, high strength aerospace aluminum frame, unilateral bearing up to 300kg, there is no need to worry about the load problem.

What are the technical parameters of the electric step?

The technical parameters of electric running boards (or electric steps) can vary by manufacturer and model, but here are some common specifications to consider:

Common Technical Parameters:

Material:Typically made from aluminum or stainless steel for durability and corrosion resistance.

Weight Capacity:Usually supports between 300 to 500 pounds, depending on the design and construction.

Dimensions:

Length: Varies by vehicle model (often around 5 to 6 feet).

Width: Generally 6 to 8 inches for the stepping surface.

Voltage:Operates on the vehicle's 12V electrical system.

Motor Type:Electric motors are commonly used for deployment and retraction, often DC motors.

Operation Mechanism:Automatic deployment upon door opening, with sensors for safe operation.

Control System:May include a wireless remote or manual switch options.

Surface Texture:Non-slip surfaces (textured or rubberized) for enhanced grip.

Installation Type:Bolt-on or clip-on mounting systems for ease of installation.

Warranty:

Typically ranges from 1 to 5 years, depending on the manufacturer.

Optional Features:

LED Lights: Some models include built-in LED lights for visibility at night.

Adjustable Height: Certain designs may allow for height adjustments to accommodate different vehicle types.

Weather Resistance: Sealed components to protect against moisture and dirt.

These parameters can help in assessing the suitability of electric running boards for specific vehicles and user needs. Always refer to the manufacturer's specifications for the most accurate information.

How to install the electric running boards?

Installing electric running boards can vary slightly depending on the specific model and vehicle, but here is a general step-by-step guide to help you through the installation process:

Tools and Materials Needed:

Electric running boards

Vehicle-specific mounting brackets (if required)

Wrench set

Socket set

Screwdriver set

Drill with drill bits (if needed)

Wire connectors

Electrical tape

Vehicle wiring harness (if applicable)

Safety glasses and gloves

Installation Steps:

1.Preparation:

l Park the vehicle on a flat surface and engage the parking brake.

l Disconnect the vehicle's battery to prevent any electrical issues during installation.

2.Unbox and Inspect:

l Unbox the electric running boards and inspect all parts to ensure nothing is missing or damaged.

3.Read the Instructions:

l Review the manufacturer’s installation manual for specific instructions related to your model.

4.Mounting Bracket Installation:

l Position the mounting brackets according to the vehicle’s frame.

l Use the provided hardware to attach the brackets securely to the vehicle’s underside. Ensure they are aligned properly.

5.Attach the Electric Running Boards:

l Slide or attach the electric running boards onto the mounted brackets.

l Secure them according to the instructions, usually with bolts or screws.

6.Wiring Connections:

l Route the wiring harness from the running boards to the vehicle’s battery or fuse box.

l Connect the wires according to the manufacturer's instructions, ensuring proper polarity.

l If the model has sensors, ensure they are correctly positioned.

7.Test the System:

l Reconnect the vehicle's battery.

l Open and close the doors to test the automatic deployment and retraction of the running boards.

8.Final Adjustments:

l Make any necessary adjustments to ensure the boards are level and function correctly.

l Secure any loose wires with electrical tape and ensure they are not exposed to moving parts.

9.Clean Up:

l Remove any tools and packaging materials from the installation area.

l Double-check all connections and fittings.

Safety Tips:

l Always wear safety glasses and gloves during installation.

l If you are unsure about any electrical connections, consult a professional.

By following these steps and referring to the specific instructions provided by the manufacturer, you can successfully install electric running boards on your vehicle.
