|Number Of Tests:||> 800||Placement On Vehicle:||Rear Door|
|Type:||Modificaation Category||Suction Lock:||Bottom|
power tailgate opener,
tailgate power lift

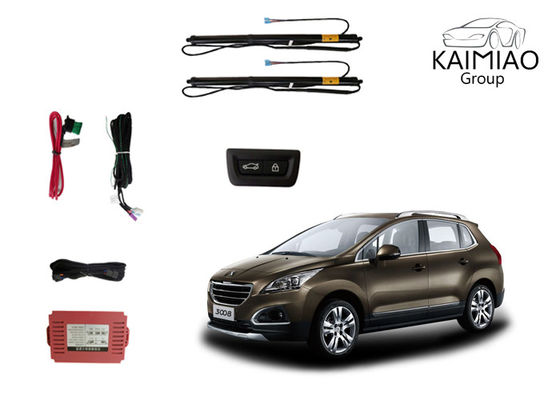

Peugeot 3008 (2017+) Electric Tailgate Lift Manufactures ans Supplier, Power Lift-Gate with Double Pole
(Double Pole / Bottom Suction Lock)
KaiMiao Electric power tailgate lifter, One button opens the convenience car life & Principle of Electric Tailgate lifter
In order to make the door closed more smooth and quiet, Each electric power tailgate lifter is designed by an electric lock, that is the way the tail door is tightly closed, not quickly pressed with its own weight, it will be loud and hurt the tailgate rare door and glass, Tighten the door slowly and quietly with an electric lock, looking at the tail door from outside the car is like being sucked, feeling very refreshing.
It is necessary to upgrade the original manual tail door to electric opening and closing fuction, The most important part is the automatic telescopic electric putter, the interior is equipped with an electric motor and a screw. The action of stretching and shortening can be carried out through electric drive, As long as the original oil pressure rod is replaced, the action that allows the tail door to be automatically closed.
In order to ensure that the electric tail gate installed can have the original factory security, KaiMiao Group put a lot of protective mechanisms on the software, the first is Anti-pinch function,The electric tail door is closed or open at the moment, if there is a slight resistance, it will stop immediately, ensure the safety of people on the car, when the switch is executed, the gear position must be in the “P” gear position, And the central control lock is also in the state of unlocking, Avoid vehicles moving at the moment, the tail door was opened inadvertently, or the thief broke into the car.
Each car with electric power tailgate lifter from “KaiMiao group” ,after opening, the height of the tailgate can reach 175~185 centimeters between the original requirements, HondaOdyssey can reach 190 centimeters.The car has also been converted to the Tein shock absorber, The height of the car is much lower than the original factory.
As for the opening of the high level,Although the oil press rod of the original plant is replaced by an electric push rod, it is sure to ensure the height of the rear door,The original factory standard between 175-185cm To avoid inadvertently bumping into the tail of the head,Or influence the convenience of the extract,If the parking environment does not allow the rear door to open too high,This product also has the function of memory opening height.The height of the rear door can be adjusted to the height of the parking lot.To avoid inadvertent lacquer or sheet metal.
And the way to switch the tail door,The unlocking key can be transmitted through the remote control of the car & End door handle switch,A button added to the lower side of the rear door.Four switches near the driver's seat and so on,Except for the outside hand, the switch can only open the end of the door,The other three can execute the instructions on and off at the same time,It is quite convenient to use.
The unlocking key can be transmitted through the remote control of the car.Or a button added to the lower side of the rear door,Three switches, such as buttons near the driver's seat, will give instructions to the tail door.The gear position must be in the P gear position,The control lock is also in the unlocked state.
Electric Tailgate List
More than 200 car models, More and more car models are developed
Some models have some special conditions, please contact us for more details
|Toyota||RAV4 (2013-2018) / Highlander (2016+) / Wish (2016+) / Previa, Estima (2007+) / Fortuner (2009+) / Harrier (2015+) / Sienna (2015+) / Sienta (2017+) / Camry (2018) / Levin / Land Cruiser (2008+) / Hiace High Roof (2010+) / Hiace Short Roof (2010+) / Alphard, Vellfire (2005+) / Innova (2016+) / Voxy, Noah (2014+) / Avanza (2017+) / Prius (2017+) / Prius A (2012+) / Venza (2015+) / CHR (2016+)|
|Volkswagen||Tiguan (2010+) / Tiguan L (2017+) / Sagitar (2015-2018) / T-Roc (2018) / Touareg (2011-2017) / Magotan B8 (2016-2017) / Magotan B7 (2011-2016) / Golf 7 (2017) / Passat (2014+) / CC (2015+) / Multivan T5 (2012-2016) / Caravelle T6 (2016+) / Beetle (2002-2016) / Sharan (2012-2018)|
|Honda||HRV (2015+) / XRV (2015+) / Vezel (2015+) / RK5 (2009+) / Odyssey (2016+) / CRV (2017+) / Shuttle (2017+) / Crosstour (2011+) / Elysion (2016+) / RG1 (2005-2009) / Mobilio (2018+) / BRV (2018+) / Avavcier URV (2017+) / Accord (2017) / Civic (2016+)|
|Nissan||C26 (2010+) / C27 (2018+) / C25 (2017+) / Elgrand (2017) / X-Trail (2014-2018) / Livina (2016+) / Terra (2017+) / Tiida (2009+) / Qashqai (2016+) / Patrol Y62 (2012+) / NV200 / Murano (2015+)|
|Hyundai||IX45 (2014+) / IX35 (2012+) / IX25 (2015+) / Tucson (2016+) / H1 (2010+)|
|Kia||Sorento (2016+) / KX5 (2016+) / KX3 (2015+) / KX7 (2017+) / Carens (2013) / Sportage (2016) / Niro (2018+) / Canival (2017)|
|Ford||Kuga, Escape (2012+) / Edge (2015+) / Focus (2013+) / Mondeo (2013+) / Taurus (2017+) / Everest (2016+)|
|Land Rover||Land Rover Sport (2015+) / Range Rover Evoque (2013-2018) / Discovery 4 (2015-2016) / Discovery 5 (2017) / Range Rove (2013+) / Freelander (2015+)|
|Chevrolet||Orlando (2018) / Capive (2015+) / Equinox (2017+)|
|Citroen||DS6 (2015) / DS7 (2015) / Aircross C5|
|Mazda||CX-5 (2012+) / CX-4 (2014+) / Mazda 5 (2012+) / Mazda 6 (2012+) / Mazda 8 (2012+) / Mazda 3 Axela (2016+)|
|BMW||X1 (2012+) / 5 Series (2012+) / 3 Series (2013+) / 2 Series 218i (2016) / 1 Series (2017+) / X3 (2011+) / X5 (2012-2015)|
|Mercedes-Benz||E Class (2011+) / S Class (2014+) / C Class (2012+) / C Class Coupe (2015+) / GLC (2016+) / GLA (2015+) / CLA (2015+) / Vito (2016+)|
|Audi||A2L (2018+) / Q3 (2013+) / A3 (2014+) / A5 Sportback (2010-2016) / A5 Coupe (2018) / A6L (2012+) / A4L (2008+)|
|Peugeot||3008 (2013+) / 4008 (2017+) / 5008 (2017) / 308 / 308SW|
|Renault||Kadjar (2016+) / Koleos (2017+)|
|Lexus||NX200 (All Series) / NX200T (2015+) / RX200T (2016-2017) / RX300 (2016-2017) / RX270 (All Series) / ES (2013-2018)|
|Mitsubishi||ASX (2013+) / Outlander (2014+) / Pajero (2012+) / X-Pander (2018+) / Pajero Sport (2016+) / Eclipes Cross (2018+) / Inger (2018)|
|Cadillac||XTS (2013+) / XT4 (2018) / XT5 (2016+) / SRX (2012+) / CT6 (2016+)|
|Buick||GL8 (2015-2016) / GL8 28T (2017) / GL8 25S (2017) / GL6 (2017+) / Envision (2014+)|
|Subaru||Forester (2015+) / XV (2014+) / Levore (2015+)|
|Volvo||XC60 (2011/2013/2015/2017/2018) / S60L (2014+) / S90 (2017+)|
|Skoda||Superb (2016+) / Octabia (2015+) / Kodiaq (2017)|
|Jeep||Cherokee (2016+) / Grand Cherokee (2014+) / Compass (2017+)|
|Infiniti||QX30 (2017+) / QX50 (2013-2016)|
|Opel||Mokka-X (2016+) / Insignia (2016+)|
|Luxgen||U5 (2017+) / U6 (2012+)|
|Geely||Atlas (2016+) / Emgrand GS (2016+) / Battle (2018+)|
|Haval||H7 (2016) / H8 (2016) / H2 (2017)|
|Borgward||BX5 (2016-2017) / BX7 (2016+)|
|Jaguar||XE (2015+) / XFL (2017+)|
|MG||GS (2015+) / MG6 (2017+) / ZS (2017+)|
|Masarati||Levante (2017+) / Ghibli (2013+)|
|Suzuki||SX4 / Vitera|
