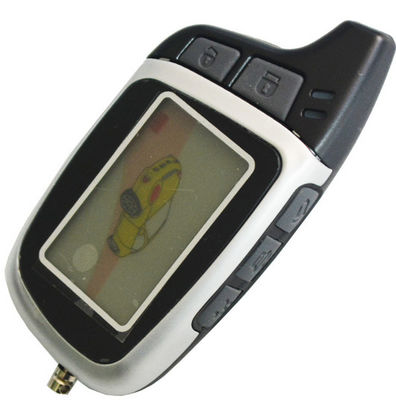

2 Way Smart Key System With Push Button Start , Alarm Automotive Security Systems

2 Way Smart Key System With Push Button Start , Alarm Automotive Security Systems
2 Way Smart Key System With Push Button Start , Alarm Automotive Security Systems 2 Way Smart Key System With Push Button Start , Alarm Automotive Security Systems 2 Way Smart Key System With Push Button Start , Alarm Automotive Security Systems

Large Image :  2 Way Smart Key System With Push Button Start , Alarm Automotive Security Systems

Product Details:
Place of Origin: China
Brand Name: KM
Certification: Rohs UL MSDS
Model Number: model:KM-CAP017
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: Box package
Delivery Time: 5~10 working days after order confimed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 20000 sets per momth
Detailed Product Description
Product Name: Car Alarm Security System Type: Two Way
Function: Remote Start Car Alarm Control Distance: More Than 600 Meters
Voltage: DC 12V Remote Control: 2 Way LCD Alarm Remote
Start Type: Push Button Start Stop
High Light:

engine start stop button kit

,

car security alarm system

2 way car alarm with remote central lock and auto



remote start stop engine



window closer output:



this product does not have pke auto lock and unlock function,does not include ultrasonic sensor ,if



needs it adds extra vlaue.if your car has chip immobilizer, you need to buy bypass or use other way



to avoid chip immobilizer



2 Way Smart Key System With Push Button Start , Alarm Automotive Security Systems 0


Product Bacic Features:



Feature 1: Remote arm or disarm



Feature 2: Remote Lock or Unlock



Feature 3: Remote Start engine



Feature 4:Remote Stop engine



Feature 5:10 minutes countdown time engine off



Feature 6: Remote learning



Feature 7:Mute arm or disarm



Feature 8: Open door flashing light



Feature 9:Remote key board lock



Feature 10: engine auto detection



Feature 11: car searching



Feature 12: 0.5s/3.5s lock time setting



Feature 13: emergency reset



Feature 14: Two way stage shock alarm



Feature 15: stop remote warning



Feature 16: stop alarming automatically



Feature 17:after remote start, must turn the key to ON position and then press the brake



Feature 18: Remote start times are 3 mostly



Feature 19:Valet Mode



Feature 20: remote trunk open



Feature 21: instrusion memory



Feature 22: warning abnormal situations



Feature 23: central lock automatication



Feature 24: auto re-arm



Feature 25: LCD remote with vibtation light audible warning



Feature 26: Remote anti-robbery



Feature 27: supporting diesel or petrol car



Feature 28:supporting auto or manual transmission car



Feature 29:window rolling up output



Feature 30:bypass negative output






Product compositions:

1 main unit,1pc start stop button,2pcs FM LCD alarm remotes,3 groups main cables,1pc start module,1pc



shock sensor,1pc LED indicator,1pc alarm electronic siren,1pc killer relay,1pc reset button,1 pc alarm



antennas,1pc english manual,1pc color box.



Main Unit Installation



2 Way Smart Key System With Push Button Start , Alarm Automotive Security Systems 1

2 Way Smart Key System With Push Button Start , Alarm Automotive Security Systems 2

The main unit is suggested to placed under the panel. After fixing the main unit in a


suitable place, start connecting the wires in accordance to the WIRE CONNECTING DIAGRAM


before putting back all the parts, simply test the system function first.




Shock Sensor Installation







Install the sensor after fixing the main unit .It is recommended to place the shock sensor
near the car doors, or beside the panel so as to easily detect any intrusion actions. To
adjust the sensitivity of the shock sensor, simply use a screw to turn the button in the
shock sensor, turning right to
adjust with a higher sensitivity or vice verse. Then test the sensitivity by triggering the
shock sensor. If i t triggered, the L.E.D will light up. Please do not directly hit the
shock sensor.

Central Lock Installation Guide

This system can control several common central lock types without any additional parts.
TYPE A:
For cars equipped with no central lock, recommended to install it first. (see FIG 1)
TYPE B:
For cars equipped with central lock but no motor on driver aside, add master motor and rod.
(see FIG 2). This type of installation is applicable to operate factory lock system in some
FORD, Mitsubishi, Mazda, and Nissan models.
*Installation tips: First install the actuator near the door' s manual latch, then fix the
rod of the actuator on the manual latch
TYPE C:
For cars equipped with central lock and with motor on the driver' s side.(see FIG 3)
TYPE D:
The door locks are controlled by electrical activated vacuum pump.(See FIG 4). The timing of
actuator mechanism can be set as 0.7 seconds or 3 seconds at the JP2.
For some Mercedes-benz and Audi models.
TYPED E:
For some cars not mentioned above, please consult your dealers.
NOTE: Type B installation method (FIG 2) is suitable for most of the cars.


Diagnosis:



The remote control does not work.

* Check the battery level. It is suggest to replacing a new battery each year.
* Check if the remote control is moisten or crash.
The remote control does not make the main unit work.
* Check the battery level in the remote control.
* Check if the remote control is moisten or crash.
* Check if the frequency of the remote control is changed.
* If possible, use another control for comparison. If both of them do not work, then check
the main unit and the wire connection.( Do not open the main unit for checking)
The central lock does not work.
* Check if the actuators are working.
* Check wire connection
* Check if the fuse of the main unit is damaged.
The siren does not sound when the system is triggered.
* Check if the sirens are available.
* Check the wire connection between the siren and main unit.
The siren keeps chirping while the main unit installs.
* Check if the socket is insert converse or check the wires connection or the CPU safety
fuse.
* If back up battery is used, check if the switch is positioned at ON status.
The alarm sounds 10 seconds after the vehicle is armed, same problem keeps happening again.
* Check if the shock sensor is too sensitive.
* Check if the door pin switches are damaged.
* Check wire connection.
The alarm is easily triggered when a heavy vehicle is passing through.
* Check if the shock sensor is too sensitive.
